ADP2139ACBZ-3.3-R7 - Analog Devices

Description: Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch

Download ADP2139ACBZ-3.3-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

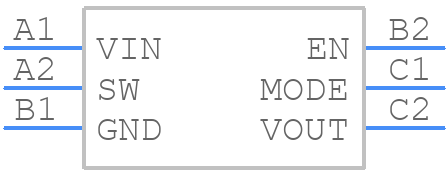

ADP2139ACBZ-3.3-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2139ACBZ-3.3-R7 - Analog Devices PCB footprint - BGA - BGA - (CB-6-12)
click to zoom
3D Models
ADP2139ACBZ-3.3-R7 - Analog Devices - 3D model - BGA - (CB-6-12)
click to zoom

ADP2139ACBZ-3.3-R7 Details

  • Manufacturer Part Number:

    ADP2139ACBZ-3.3-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-12

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.505 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.65 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.64 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.03 mm

ADP2139ACBZ-3.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2139 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • Although the datasheet specifies a maximum input voltage of 5.5V, the ADP2139 can handle input voltages up to 6V for short durations (e.g., during power-up or power-down). However, continuous operation above 5.5V is not recommended and may affect the device's reliability.
  • The ADP2139 is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking and cooling in high-temperature applications.
  • To troubleshoot issues with the ADP2139, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values against the recommended specifications. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
