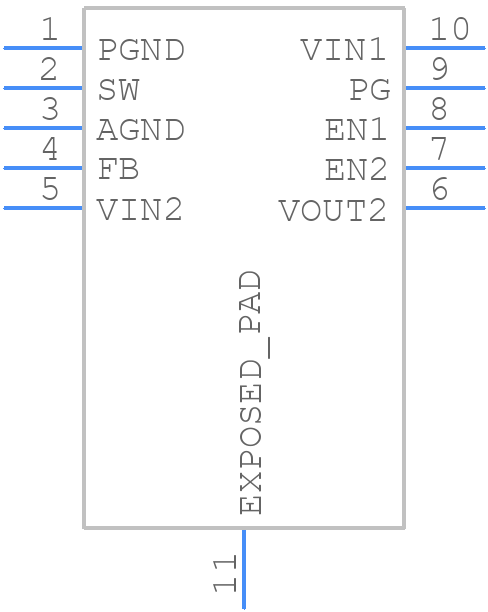

ADP2140ACPZ1812R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2140ACPZ1812R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9_2025
click to zoom
3D Models
ADP2140ACPZ1812R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9_2025
click to zoom

ADP2140ACPZ1812R7 Details

  • Manufacturer Part Number:

    ADP2140ACPZ1812R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    1.23 V

  • Output Voltage-Min:

    1.17 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3150 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2140ACPZ1812R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2140 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • The choice of input and output capacitors depends on the specific application and the desired performance. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. X5R or X7R ceramic capacitors are good options.
  • The maximum ambient temperature for the ADP2140 is 125°C, but the device can operate up to 150°C with derating. It's essential to ensure that the device is properly cooled and that the maximum junction temperature is not exceeded.
  • Yes, the ADP2140 is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to various industry standards, including AEC-Q100. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the ADP2140, start by checking the input voltage, output voltage, and current. Verify that the device is properly powered and that the input and output capacitors are correctly connected. Check for any signs of overheating, and ensure that the device is properly cooled. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADP2140ACPZ1812R7 Overview

Use the download button to access the ADP2140ACPZ1812R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP21, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
