ADP2140ACPZ3312R7 - Analog Devices

Description: LDO Regulator

Download ADP2140ACPZ3312R7 Model
Schematic
symbols

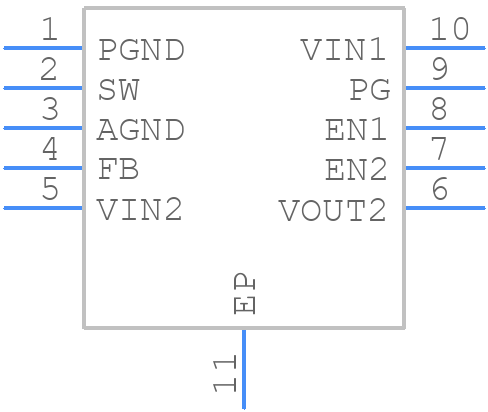

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP2140ACPZ3312R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9
click to zoom
3D Models
ADP2140ACPZ3312R7 - Analog Devices  - 3D model - Small Outline No-lead - CP-10-9
click to zoom

ADP2140ACPZ3312R7 Details

  • Manufacturer Part Number:

    ADP2140ACPZ3312R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    1.23 V

  • Output Voltage-Min:

    1.17 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3150 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2140ACPZ3312R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2140 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to minimize noise and interference.
  • The choice of input and output capacitors for the ADP2140 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
  • The ADP2140 is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To ensure the ADP2140 is stable and doesn't oscillate, it's recommended to follow the layout guidelines, use the recommended input and output capacitors, and ensure that the device is properly decoupled from the power supply. Additionally, the output voltage should be set to a value that is within the device's specified range, and the output current should be limited to the device's maximum rating.
  • Yes, the ADP2140 is suitable for use in high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it meets the requirements of the AEC-Q100 automotive standard. However, it's recommended to consult with Analog Devices' application engineers to ensure that the device meets the specific requirements of the application.
