ADP2164ACPZ-1.0-R7 - Analog Devices

Description: Switching Voltage Regulators 6.5V 4A Hi Eff Step-Down

Download ADP2164ACPZ-1.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

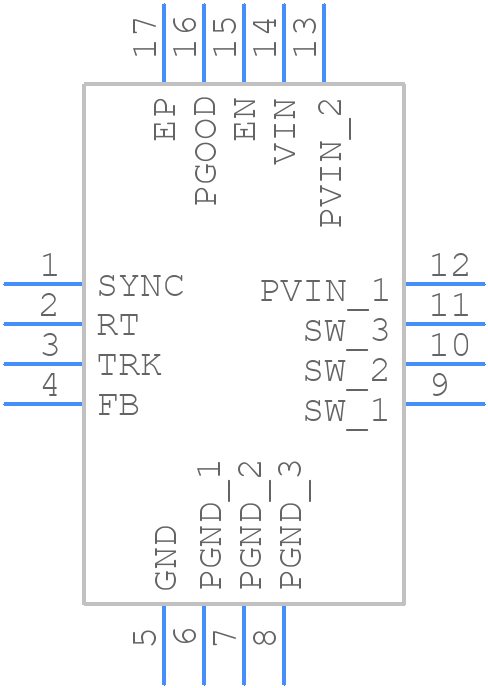

ADP2164ACPZ-1.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2164ACPZ-1.0-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADP2164ACPZ-1.0-R7
click to zoom
3D Models
ADP2164ACPZ-1.0-R7 - Analog Devices - 3D model - Quad Flat No-Lead - ADP2164ACPZ-1.0-R7
click to zoom

ADP2164ACPZ-1.0-R7 Details

  • Manufacturer Part Number:

    ADP2164ACPZ-1.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.4 A

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADP2164ACPZ-1.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for ADP2164ACPZ-1.0-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the specified range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). A minimum of 10uF output capacitance is recommended.
  • The maximum ambient temperature for reliable operation of ADP2164ACPZ-1.0-R7 is 85°C. However, the device can operate up to 125°C junction temperature. It's essential to ensure proper thermal management and heat dissipation to prevent overheating.
  • Yes, the ADP2164ACPZ-1.0-R7 is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard for automotive reliability and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the ADP2164ACPZ-1.0-R7, start by verifying the PCB layout and component values against the recommended design. Check for proper input and output capacitor selection, and ensure that the input voltage is within the specified range. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
