ADP2164ACPZ-2.5-R7 - Analog Devices

Description: Buck Switching Regulator IC Positive Fixed 2.5V 1 Output 4A 16-WQFN Exposed Pad, CSP

Download ADP2164ACPZ-2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

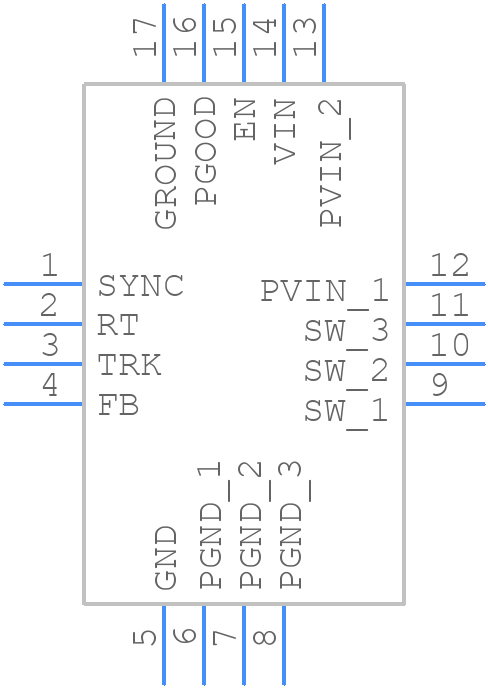

ADP2164ACPZ-2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2164ACPZ-2.5-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-26
click to zoom
3D Models
ADP2164ACPZ-2.5-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-26
click to zoom

ADP2164ACPZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADP2164ACPZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.4 A

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADP2164ACPZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2164 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended output capacitor selection guidelines, including the type, value, and ESR. Additionally, the output voltage should be decoupled with a ceramic capacitor (e.g., 10uF) and a bulk capacitor (e.g., 22uF) in parallel. The output voltage should also be monitored and adjusted as needed to prevent oscillations.
  • The ADP2164 has an absolute maximum input voltage rating of 6.5V. However, the recommended maximum input voltage is 5.5V to ensure reliable operation and prevent damage to the device.
  • The ADP2164 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
  • The power dissipation of the ADP2164 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The calculated power dissipation should be within the recommended maximum power dissipation rating of 1.5W.
