ADP2166ACPZ-1.0-R7 - Analog Devices

Description: 5.5 V, 6 A, High Efficiency, Step-Down DC-to-DC Regulators with Output Tracking

Download ADP2166ACPZ-1.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

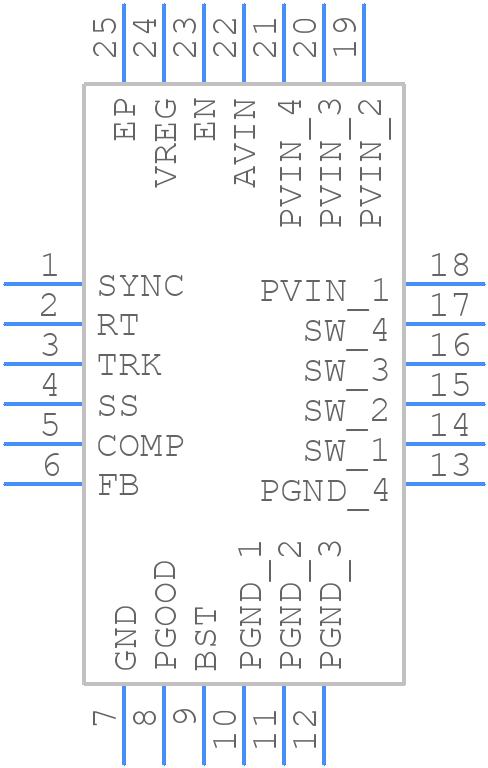

ADP2166ACPZ-1.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2166ACPZ-1.0-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-15)
click to zoom
3D Models
ADP2166ACPZ-1.0-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-15)
click to zoom

ADP2166ACPZ-1.0-R7 Details

  • Manufacturer Part Number:

    ADP2166ACPZ-1.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    4.95 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADP2166ACPZ-1.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2166 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate.
  • To ensure the stability of the ADP2166 output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage should be decoupled from the input voltage using a capacitor and a resistor in series.
  • The ADP2166 can handle an input voltage up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • The ADP2166 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and to ensure good thermal management to prevent overheating.
  • To troubleshoot issues with the ADP2166 output voltage, check the input voltage, output capacitor value, and PCB layout. Ensure that the input voltage is within the recommended range, the output capacitor is properly connected, and the PCB layout is correct. Also, check for any signs of overheating or damage to the device.
