ADP2166ACPZ-3.3-R7 - Analog Devices

Description: Switching Voltage Regulators 6V/6A High Eff, Step-Down DC-to-DC Reg

Download ADP2166ACPZ-3.3-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

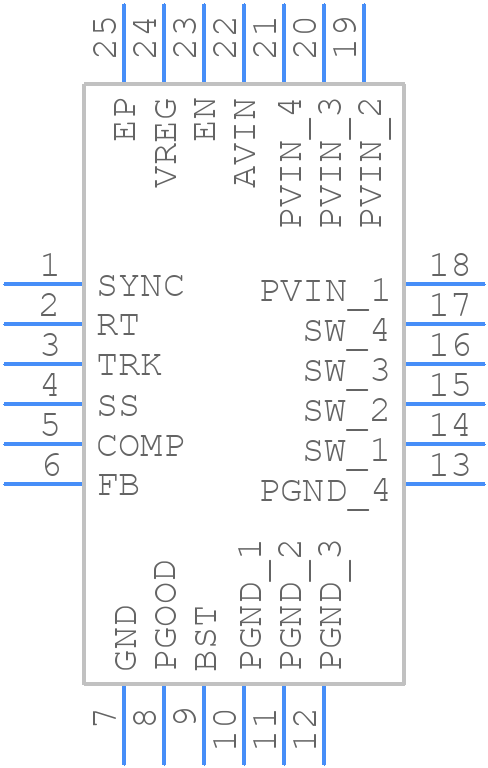

ADP2166ACPZ-3.3-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2166ACPZ-3.3-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-15
click to zoom
3D Models
ADP2166ACPZ-3.3-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-15
click to zoom

ADP2166ACPZ-3.3-R7 Details

  • Manufacturer Part Number:

    ADP2166ACPZ-3.3-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    4.95 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADP2166ACPZ-3.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2166 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure the stability of the ADP2166 output voltage, it's essential to use the recommended output capacitor value and type, as specified in the datasheet. Additionally, the output capacitor should be placed close to the device, and the PCB layout should be designed to minimize the parasitic inductance and resistance.
  • The maximum input voltage that can be applied to the ADP2166 is 6.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the specified range.
  • The ADP2166 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and to ensure good thermal management to prevent overheating.
  • To troubleshoot issues with the ADP2166 output voltage, check the input voltage, output capacitor value and type, and the PCB layout. Ensure that the input voltage is within the specified range, and the output capacitor is properly connected and meets the recommended specifications. Also, check for any signs of overheating or damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP2166ACPZ-3.3-R7 Overview

Use the download button to access the ADP2166ACPZ-3.3-R7 schematic symbol, PCB footprint, and 3D model.
