ADP2230ACPZ-R7 - Analog Devices

Description: Switching Voltage Regulators Dual Buck Adj Vout

Download ADP2230ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

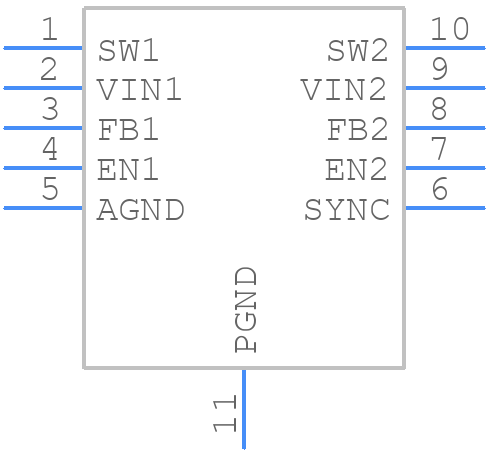

ADP2230ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2230ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - [LFCSP_WD]
click to zoom
3D Models
ADP2230ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - [LFCSP_WD]
click to zoom

ADP2230ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP2230ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ADJUSTBLE OUTPUT VOLTAGE MODE O.8 V TO 6 V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2230ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2230ACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
  • The ADP2230ACPZ-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its recommended temperature range.
  • Yes, the ADP2230ACPZ-R7 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to consult the datasheet and application notes to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the ADP2230ACPZ-R7, start by verifying the device's input and output voltages, and checking for any signs of overheating. Use an oscilloscope to check the output voltage ripple and noise, and consult the datasheet and application notes for guidance on troubleshooting common issues.
