ADP224ACPZ-2818-R7 - Analog Devices

Description: Linear Voltage Regulators Dual 300mA Fixed Out QOD Lo Noise Hi PSRR

Download ADP224ACPZ-2818-R7 Model

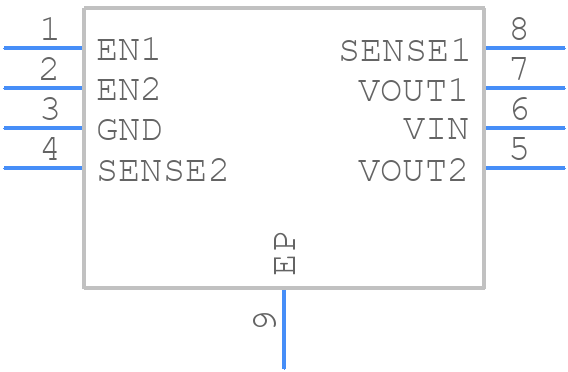

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP224ACPZ-2818-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP_UD]
click to zoom
3D Models
ADP224ACPZ-2818-R7 - Analog Devices  - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP_UD]
click to zoom

ADP224ACPZ-2818-R7 Details

  • Manufacturer Part Number:

    ADP224ACPZ-2818-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.0031%

  • Load Regulation-Max:

    0.0167%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Current2-Max:

    0.3 A

  • Output Voltage1-Max:

    2.856 V

  • Output Voltage1-Min:

    2.744 V

  • Output Voltage1-Nom:

    2.8 V

  • Output Voltage2-Max:

    1.836 V

  • Output Voltage2-Min:

    1.764 V

  • Output Voltage2-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    0.65 mm

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

ADP224ACPZ-2818-R7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, connecting it to a copper plane on the PCB, and ensuring good thermal conductivity between the pad and the plane. A detailed layout guide can be found in the ADP224 evaluation board documentation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, ensure good airflow, and consider using thermal interface materials (TIMs) to improve heat transfer between the device and the heat sink. Additionally, derating the output current and voltage may be necessary to prevent overheating.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation. The capacitor should be placed as close to the input pins as possible to minimize parasitic inductance.
  • To troubleshoot output voltage instability or oscillations, check the input voltage, output load, and PCB layout for any issues. Ensure that the output capacitor is properly sized and placed, and that the feedback network is correctly configured. Also, verify that the device is not operating in a region of instability, such as near the minimum or maximum output voltage.
  • The maximum allowed output current during startup or fault conditions is limited by the device's overcurrent protection (OCP) threshold, which is typically set to 150% of the nominal output current. Exceeding this limit can cause the device to shut down or enter a fault state.
