- Stock & Prices $ Price & Stock for ADP2303ARDZ-5.0
- Part Number ADP2303ARDZ-5.0
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RD-8-1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADP2303ARDZ-5.0 Details
-
Manufacturer Part Number:
ADP2303ARDZ-5.0
-
Source Url Status Check Date:
2013-05-01 14:56:45.976
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
RD-8-1
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
ADP2303ARDZ-5.0 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADP2303 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND can help to improve stability.
-
The ADP2303 can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure that it can deliver the required output current without overheating.
-
The ADP2303 is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's essential to check the device's thermal performance and power dissipation to ensure that it can operate reliably in the target environment. Additional thermal management measures, such as heat sinks or thermal interfaces, may be required.
-
To troubleshoot issues with the ADP2303, start by checking the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the device is properly connected and that the input and output capacitors are correctly sized and placed. Check the PCB layout for any signs of damage, overheating, or electrical noise. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support team for assistance.
Trust Checks
System Verified
ADP2303ARDZ-5.0 Overview

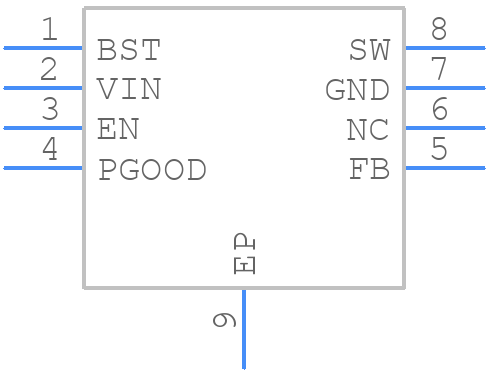

Use the download button to access the ADP2303ARDZ-5.0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP23,
or try a keyword search, such as Switching Regulator or Controllers
