ADP2325ACPZ-R7 - Analog Devices

Description: Analog Devices ADP2325ACPZ-R7, DC-DC Converter Dual, 5A, 20 V, Step Down, 1.2 MHz, 32-Pin, LFCSP WQ

Download ADP2325ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

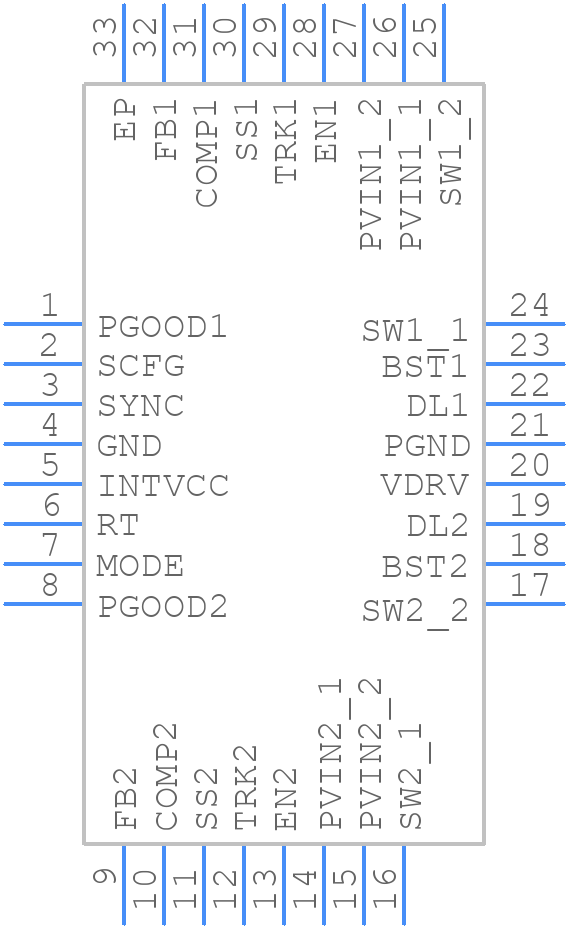

ADP2325ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2325ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7
click to zoom
3D Models
ADP2325ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7
click to zoom

ADP2325ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP2325ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:45.982

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    DMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADP2325ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2325ACPZ-R7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor to minimize ringing. Also, ensure that the input voltage is within the recommended range.
  • The ADP2325ACPZ-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C.
  • Yes, the ADP2325ACPZ-R7 is suitable for high-reliability and high-temperature applications. However, it's essential to follow the recommended derating guidelines for the device's power dissipation and junction temperature. Additionally, consider using a higher-reliability grade or a more robust package option, such as the ADP2325ACPZ-RL7.
  • To troubleshoot issues with the ADP2325ACPZ-R7, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly decoupled. Use an oscilloscope to check for any oscillations or ringing on the output. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.
