ADP2370ACPZ-1.2-R7 - Analog Devices

Description: Switching Voltage Regulators 800mA Buck 1.2Vout

Download ADP2370ACPZ-1.2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

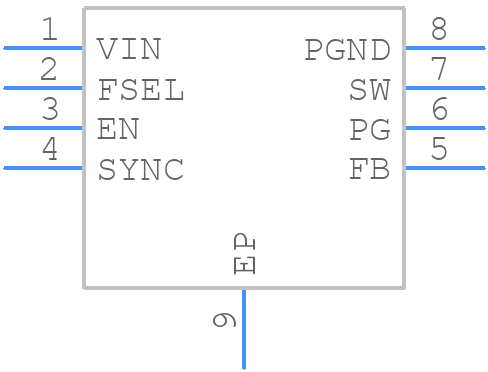

ADP2370ACPZ-1.2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2370ACPZ-1.2-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-5 (LFCSP_WD)
click to zoom
3D Models
ADP2370ACPZ-1.2-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-5 (LFCSP_WD)
click to zoom

ADP2370ACPZ-1.2-R7 Details

  • Manufacturer Part Number:

    ADP2370ACPZ-1.2-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:45.983

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    3.2 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    1.236 V

  • Output Voltage-Min:

    1.164 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2370ACPZ-1.2-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the exposed pad to the ground plane is recommended. This layout helps to dissipate heat efficiently and reduce thermal resistance.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF with an ESR of 10mΩ or less is recommended. You can also add a 10nF capacitor in parallel with the output capacitor to improve stability.
  • The absolute maximum input voltage rating for the ADP2370 is 6.5V. Applying a voltage higher than this can damage the device. It's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. You'll need to consider factors such as the input voltage, output voltage, switching frequency, and output capacitance. You can also use simulation tools or consult with an Analog Devices application engineer for guidance.
  • For high-power applications, it's essential to consider thermal design carefully. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. You can also use thermal simulation tools to model the thermal performance of your design.
