ADP2370ACPZ-2.5-R7 - Analog Devices

Description: High Voltage, 1.2 MHz/600 kHz, 800 mA, Low Quiescent Current Buck Regulator

Download ADP2370ACPZ-2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

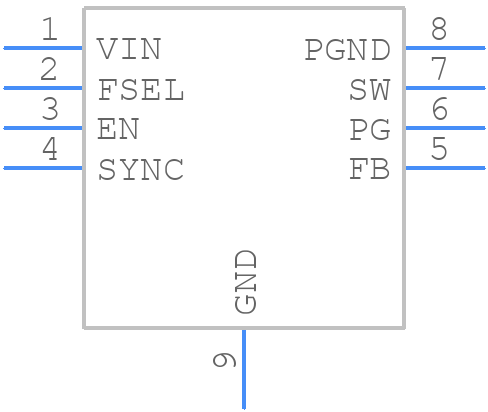

ADP2370ACPZ-2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2370ACPZ-2.5-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 3 mm Body, Very Very Thin, Dual Lead (CP-8-5)
click to zoom
3D Models
ADP2370ACPZ-2.5-R7 - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP_WD] 3 mm × 3 mm Body, Very Very Thin, Dual Lead (CP-8-5)
click to zoom

ADP2370ACPZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADP2370ACPZ-2.5-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:46.008

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    3.2 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    2.575 V

  • Output Voltage-Min:

    2.425 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2370ACPZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2370 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen to ensure a minimum equivalent series resistance (ESR) of 10 mohm, and the input capacitor should be chosen to ensure a minimum capacitance of 1 uF.
  • The ADP2370 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to consult the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
  • Yes, the ADP2370 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems. However, it's essential to consult the specific requirements of the application and to perform the necessary testing and validation to ensure the device meets the required standards.
  • To troubleshoot issues with the ADP2370, start by checking the input and output voltages, and the output current. Verify that the device is properly powered and that the input and output capacitors are properly connected. Check for any signs of overheating, and ensure that the device is operated within its specified temperature range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, and consider contacting Analog Devices' technical support for further assistance.
