ADP2371ACPZ-R7 - Analog Devices

Description: Switching Voltage Regulators 800mA Buck ADJ Vout w/QOD

Download ADP2371ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

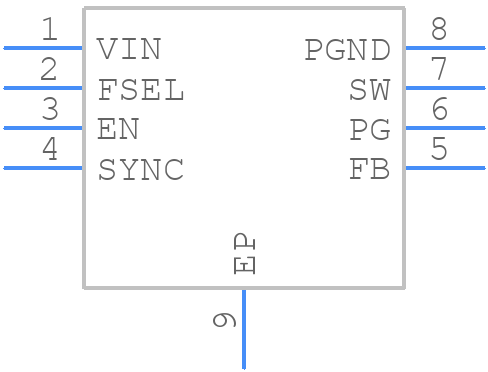

ADP2371ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2371ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-5 (LFCSP_WD)
click to zoom
3D Models
ADP2371ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-5 (LFCSP_WD)
click to zoom

ADP2371ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP2371ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:46.03

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ADJUSTBLE OUTPUT MODE 0.8 TO 14

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    3.2 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    14 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADP2371ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2371ACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize ringing and oscillations.
  • The ADP2371ACPZ-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature remains within the specified range to ensure reliable operation.
  • Yes, the ADP2371ACPZ-R7 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the ADP2371ACPZ-R7, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly decoupled and laid out on the PCB. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
