ADP2504ACPZ-3.5-R7 - Analog Devices

Description: Conv DC-DC 2.3V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 3.5V 1A 10-Pin LFCSP EP T/R

Download ADP2504ACPZ-3.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

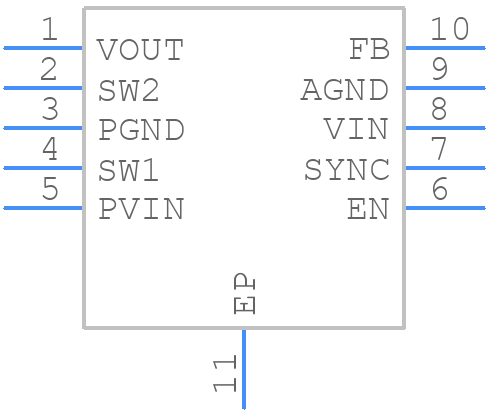

ADP2504ACPZ-3.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2504ACPZ-3.5-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
ADP2504ACPZ-3.5-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

ADP2504ACPZ-3.5-R7 Details

  • Manufacturer Part Number:

    ADP2504ACPZ-3.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XBCS-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Nom:

    3.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    STYLE CHIP SCALE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2900 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADP2504ACPZ-3.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2504ACPZ-3.5-R7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor and a high-quality input capacitor. It's also important to ensure that the input voltage is within the recommended range and that the device is not subjected to excessive noise or EMI.
  • The maximum ambient temperature range for the ADP2504ACPZ-3.5-R7 is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the ADP2504ACPZ-3.5-R7 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary standards and regulations for your application.
  • To troubleshoot issues with the ADP2504ACPZ-3.5-R7, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Use an oscilloscope to check for noise, oscillations, or other anomalies. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP2504ACPZ-3.5-R7 Overview

Use the download button to access the ADP2504ACPZ-3.5-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP25, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
