ADP2504ACPZ-4.2-R7 - Analog Devices

Description: Voltage Regulators - Switching Regulators 1000mA 2.5MHz Buck-Boost

Download ADP2504ACPZ-4.2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

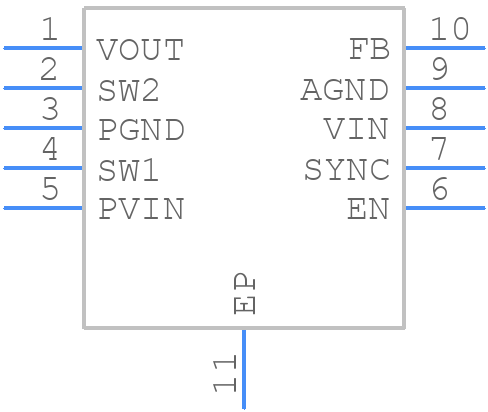

ADP2504ACPZ-4.2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2504ACPZ-4.2-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
ADP2504ACPZ-4.2-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

ADP2504ACPZ-4.2-R7 Details

  • Manufacturer Part Number:

    ADP2504ACPZ-4.2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    4.284 V

  • Output Voltage-Min:

    4.116 V

  • Output Voltage-Nom:

    4.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2900 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADP2504ACPZ-4.2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2504ACPZ-4.2-R7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR input capacitor and a low-ESR output capacitor, and ensure that the output capacitor is properly sized for the output voltage and current. Also, avoid using long input and output traces, and keep the device away from noise sources.
  • The maximum ambient temperature range for the ADP2504ACPZ-4.2-R7 is -40°C to +125°C. However, the device's performance and reliability may degrade at temperatures above 85°C, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Yes, the ADP2504ACPZ-4.2-R7 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and it's also suitable for use in high-reliability industrial and medical applications.
  • To troubleshoot issues with the ADP2504ACPZ-4.2-R7, start by checking the input voltage and current, and ensure that the device is properly powered. Then, check the output voltage and current, and ensure that the output is within the specified range. If the issue persists, check the PCB layout and component values, and ensure that they match the recommended values in the datasheet. Finally, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
