ADP3110AKCPZ-RL - onsemi

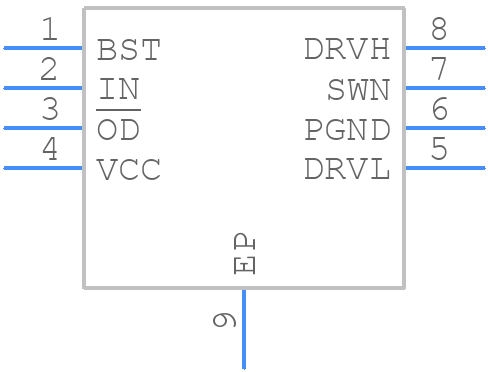

ADP3110AKCPZ-RL Details

• Manufacturer Part Number:

  ADP3110AKCPZ-RL

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DFN8 3x3, 0.5P

• Package Description:

  DFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  506BJ

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• High Side Driver:

  YES

• Input Characteristics:

  GATED

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Output Characteristics:

  STANDARD

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  5 mA

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  4.15 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  35 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.07 µs

• Turn-on Time:

  0.04 µs

• Width:

  3 mm
