ADP322ACPZ-135-R7 - Analog Devices

Description: Analog Devices ADP322ACPZ-135-R7, 3 LDO Regulator, 200mA, 1.8 V, 2.5 V, 3.3 V, ±2% 16-Pin, LFCSP

Download ADP322ACPZ-135-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

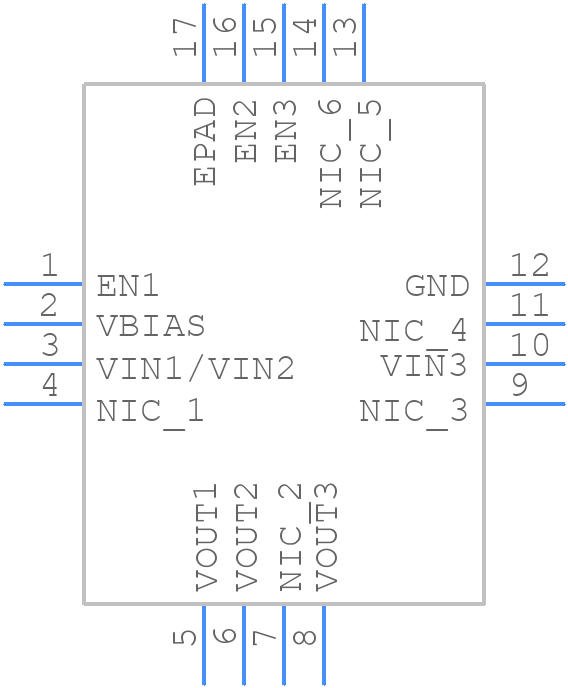

ADP322ACPZ-135-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP322ACPZ-135-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom
3D Models
ADP322ACPZ-135-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom

ADP322ACPZ-135-R7 Details

  • Manufacturer Part Number:

    ADP322ACPZ-135-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.17 V

  • Dropout Voltage1-Nom:

    0.11 V

  • Dropout Voltage2-Max:

    0.17 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00168%

  • Load Regulation-Max:

    0.0328%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Current2-Max:

    0.2 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Output Voltage2-Max:

    2.55 V

  • Output Voltage2-Min:

    2.45 V

  • Output Voltage2-Nom:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADP322ACPZ-135-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP322ACPZ-135-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply lines and to use a low-impedance output capacitor.
  • The ADP322ACPZ-135-R7 can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the ADP322ACPZ-135-R7 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in industrial and medical applications that require high reliability.
  • To troubleshoot issues with the ADP322ACPZ-135-R7, start by checking the power supply lines and ensuring that the input voltage is within the recommended range. Next, check the output voltage and current to ensure that they are within the expected range. If the issue persists, check the PCB layout and component values to ensure that they meet the recommended guidelines. Finally, consult the datasheet and application notes for troubleshooting guidance.
