ADP3333ARMZ-5-R7 - Analog Devices

Description: LDO Regulator 5V 0.6A 8-Pin MSOP

Download ADP3333ARMZ-5-R7 Model

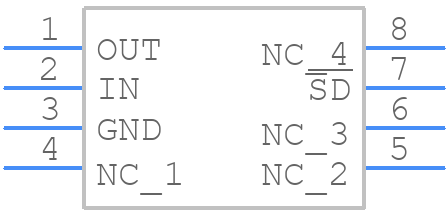

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP3333ARMZ-5-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - msop 8-ren1
click to zoom
3D Models
ADP3333ARMZ-5-R7 - Analog Devices  - 3D model - Small Outline Packages - msop 8-ren1
click to zoom

ADP3333ARMZ-5-R7 Details

  • Manufacturer Part Number:

    ADP3333ARMZ-5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, ULTRA SMALL, MO-187A, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.23 V

  • Dropout Voltage1-Nom:

    0.14 V

  • Input Voltage Absolute-Max:

    16 V

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    2.6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    5.09 V

  • Output Voltage1-Min:

    4.91 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    3 mm

ADP3333ARMZ-5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3333ARMZ-5-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen to ensure a minimum equivalent series resistance (ESR) of 0.1 ohms, and the input capacitor should be a low-ESR type. It's also recommended to add a 10nF capacitor in parallel with the output capacitor to improve stability.
  • The ADP3333ARMZ-5-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • Yes, the ADP3333ARMZ-5-R7 is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow the recommended design guidelines and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • The power dissipation of the ADP3333ARMZ-5-R7 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The maximum power dissipation is 1.5W, and it's essential to ensure that the device is properly heat-sinked to prevent overheating.
