ADP3339AKCZ-1.5-RL - Analog Devices

Description: IC REG LINEAR 1.5V 1.5A SOT223-3

Download ADP3339AKCZ-1.5-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

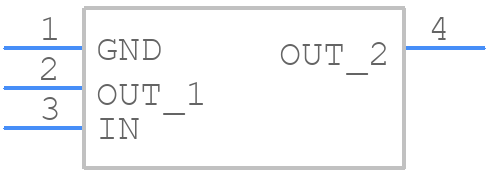

ADP3339AKCZ-1.5-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

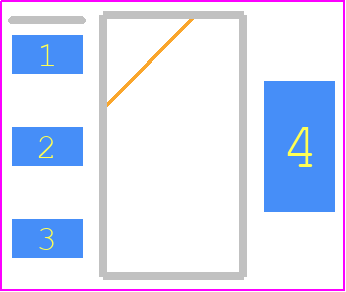

ADP3339AKCZ-1.5-RL - Analog Devices PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - KC-3 (SOT-223)_1
click to zoom
3D Models
ADP3339AKCZ-1.5-RL - Analog Devices - 3D model - SOT223 (3-Pin) - KC-3 (SOT-223)_1
click to zoom

ADP3339AKCZ-1.5-RL Details

  • Manufacturer Part Number:

    ADP3339AKCZ-1.5-RL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-261AA

  • Package Description:

    TO-261AA, SOT-223, 4 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.48 V

  • Dropout Voltage1-Nom:

    0.23 V

  • Input Voltage Absolute-Max:

    8.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    3

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    1.5225 V

  • Output Voltage1-Min:

    1.4775 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOT-223

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.3 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    1.9%

  • Width:

    3.5 mm

ADP3339AKCZ-1.5-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3339 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability of the ADP3339, it's essential to follow the recommended capacitor values and types, keep the input and output impedance within the specified range, and avoid capacitive loads on the output. Additionally, the device should be operated within the recommended input voltage range and the output should not be short-circuited.
  • The maximum output current of the ADP3339 is 3A. However, it's recommended to operate the device within the recommended output current range of 1mA to 1.5A for optimal performance and to avoid overheating.
  • The ADP3339 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and to ensure proper heat sinking to prevent overheating.
  • To troubleshoot issues with the ADP3339, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended specifications and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or current consumption. If the issue persists, consult the datasheet and application notes or contact Analog Devices' support team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP3339AKCZ-1.5-RL Overview

Use the download button to access the ADP3339AKCZ-1.5-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP33, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
