ADP3623ARHZ-RL - Analog Devices

Description: High Speed, Dual, 4 A MOSFET Driver with Thermal Protection 9.5 V to 18 V @ 2.2 nF −40°C to +85°C

Download ADP3623ARHZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

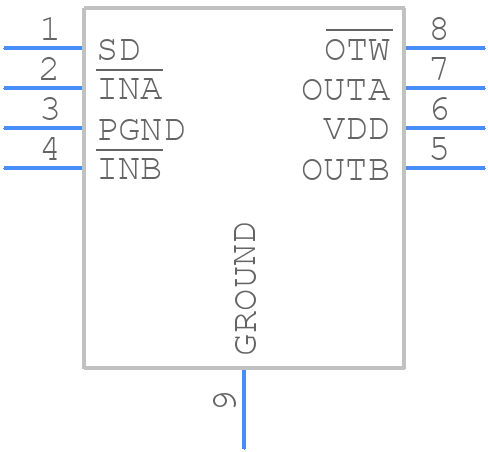

ADP3623ARHZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3623ARHZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RH-8-1_2024
click to zoom
3D Models
ADP3623ARHZ-RL - Analog Devices - 3D model - Small Outline Packages - RH-8-1_2024
click to zoom

ADP3623ARHZ-RL Details

  • Manufacturer Part Number:

    ADP3623ARHZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA-T, MINI, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    3 mm

ADP3623ARHZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3623ARHZ-RL involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize oscillations.
  • The ADP3623ARHZ-RL is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's essential to ensure that the device does not exceed its maximum junction temperature (TJ) of 150°C.
  • Yes, the ADP3623ARHZ-RL is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the ADP3623ARHZ-RL, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly decoupled. Use an oscilloscope to check for oscillations or noise on the input and output pins. If the issue persists, consult the datasheet and application notes for further guidance.
