- Part Number ADP3624ARDZ-RL
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RD-8-1)+2025
- Released Date Jan 11, 2017
- Last Modified Date May 26, 2025 7:41 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADP3624ARDZ-RL Details
-
Manufacturer Part Number:
ADP3624ARDZ-RL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
RD-8-1
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
ADP3624ARDZ-RL Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADP3624ARDZ-RL involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the ADP3624ARDZ-RL has a built-in compensation network, so no external compensation is required.
-
The ADP3624ARDZ-RL has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range is dependent on the specific application and the thermal design of the system.
-
Yes, the ADP3624ARDZ-RL is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for high-reliability industrial and medical applications.
-
To troubleshoot issues, start by checking the input and output voltages, and ensure that the input voltage is within the recommended range. Also, check the PCB layout and component values to ensure they match the recommended values. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
System Verified
ADP3624ARDZ-RL Overview

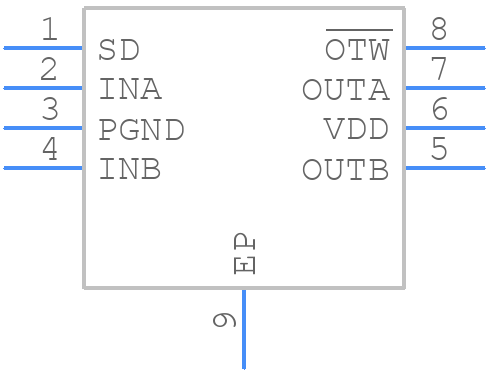

Use the download button to access the ADP3624ARDZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP36,
or try a keyword search, such as MOSFET Drivers
