ADP3625ARHZ-RL - Analog Devices

Description: Gate Drivers High Speed, Dual, 4A Driver, 4.5-18Vin

Download ADP3625ARHZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

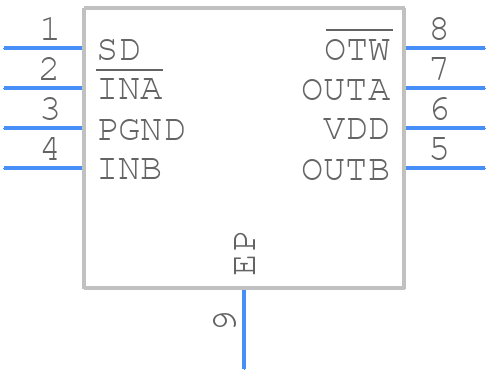

ADP3625ARHZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3625ARHZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-1)
click to zoom
3D Models
ADP3625ARHZ-RL - Analog Devices - 3D model - Small Outline Packages - . 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-1)
click to zoom

ADP3625ARHZ-RL Details

  • Manufacturer Part Number:

    ADP3625ARHZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA-T, MINI, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    3 mm

ADP3625ARHZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3625ARHZ-RL involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output stages to minimize noise coupling.
  • To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize ringing and oscillations.
  • The maximum safe operating area (SOA) for the ADP3625ARHZ-RL is not explicitly stated in the datasheet. However, it's recommended to operate the device within the specified voltage and current ratings to avoid damage or degradation. Consult with Analog Devices' application engineers or refer to the device's reliability report for more information.
  • The ADP3625ARHZ-RL is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the thermal derating curves provided in the datasheet.
  • To troubleshoot issues with the ADP3625ARHZ-RL, start by verifying the input voltage, output voltage, and output current. Check for proper component values, PCB layout, and decoupling. Use an oscilloscope to inspect the output waveform for signs of oscillation or ringing. Consult the datasheet and application notes for guidance, and contact Analog Devices' support team if necessary.
