ADP3629ARMZ-R7 - Analog Devices

Description: High Speed, Dual, 2 A MOSFET Driver 9.5V ~ 18V 0.8V, 2V -40°C ~ 150°C (TJ)

Download ADP3629ARMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

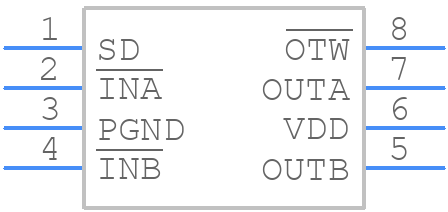

ADP3629ARMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3629ARMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8_2025-3
click to zoom
3D Models
ADP3629ARMZ-R7 - Analog Devices - 3D model - Small Outline Packages - RM-8_2025-3
click to zoom

ADP3629ARMZ-R7 Details

  • Manufacturer Part Number:

    ADP3629ARMZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:46.858

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187-AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    30 µs

  • Width:

    3 mm

ADP3629ARMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3629 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output stages to minimize noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the input and output capacitors are properly sized and placed, and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small series resistor (e.g., 1-10 ohms) between the output and the load.
  • The ADP3629 can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. Be sure to check the device's thermal performance and power dissipation to ensure it can handle the required output current.
  • The ADP3629 is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. Be sure to check the device's thermal performance and power dissipation to ensure it can handle the required operating conditions. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the device's junction temperature.
  • To troubleshoot issues with the ADP3629, start by checking the input voltage, output voltage, and output current using an oscilloscope or multimeter. Verify that the device is operated within its recommended operating conditions and that the PCB layout and component values are correct. If issues persist, try swapping out components or checking for signs of physical damage or overheating.
