ADP3631ARZ-R7 - Analog Devices

Description: High Speed, Dual, 2 A MOSFET Driver

Download ADP3631ARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

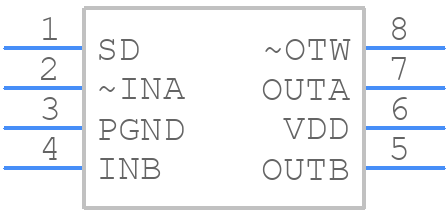

Symbol
ADP3631ARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3631ARZ-R7 - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
ADP3631ARZ-R7 - Analog Devices - 3D model - Other - SOIC127P600X175-8N
click to zoom

ADP3631ARZ-R7 Details

  • Manufacturer Part Number:

    ADP3631ARZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:46.879

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    30 µs

  • Width:

    3.9 mm

ADP3631ARZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3631ARZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply lines and to use a low-impedance output capacitor.
  • The maximum ambient temperature range for the ADP3631ARZ-R7 is -40°C to +125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the ADP3631ARZ-R7 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary qualifications for your application.
  • To troubleshoot issues with the ADP3631ARZ-R7, start by checking the power supply lines and ensuring that the input and output capacitors are properly connected. Use an oscilloscope to check the output voltage and current, and verify that the device is operating within its specified limits. If the issue persists, consult the datasheet and application notes, and contact Analog Devices Inc. for further support.
