ADP3633ARDZ-RL - Analog Devices

Description: High Speed, Dual, 4 A MOSFET Driver with Thermal Protection

Download ADP3633ARDZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

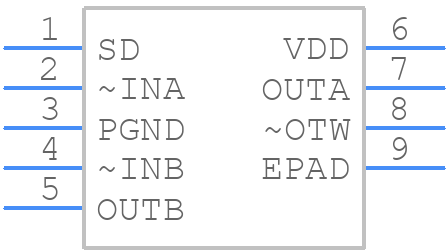

Symbol
ADP3633ARDZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3633ARDZ-RL - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-9N
click to zoom
3D Models
ADP3633ARDZ-RL - Analog Devices - 3D model - Other - SOIC127P600X175-9N
click to zoom

ADP3633ARDZ-RL Details

  • Manufacturer Part Number:

    ADP3633ARDZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    3.9 mm

ADP3633ARDZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADP3633ARDZ-RL can be found in the ADP3633 Evaluation Board documentation, which provides a reference design for optimal performance. Additionally, Analog Devices provides a PCB layout guide in their application notes, such as AN-772, which provides general guidelines for PCB layout and thermal management.
  • The output capacitor selection for the ADP3633ARDZ-RL depends on the specific application requirements. A general guideline is to choose a capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is a good starting point. The ADP3633 datasheet provides more detailed information on output capacitor selection and optimization.
  • The maximum ambient temperature for the ADP3633ARDZ-RL is 125°C, as specified in the datasheet. However, the device's performance and reliability may degrade at high temperatures, so it's recommended to operate the device within a temperature range of -40°C to 105°C for optimal performance.
  • Yes, the ADP3633ARDZ-RL is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is also suitable for industrial and medical applications that require high reliability. However, it's essential to review the device's specifications and ensure it meets the specific requirements of your application.
  • To troubleshoot issues with the ADP3633ARDZ-RL, start by reviewing the device's datasheet and application notes. Check the PCB layout, component selection, and soldering quality. Use oscilloscopes and thermal imaging cameras to identify any issues. Analog Devices also provides a troubleshooting guide in their application notes, such as AN-1132, which provides a step-by-step approach to troubleshooting common issues.
