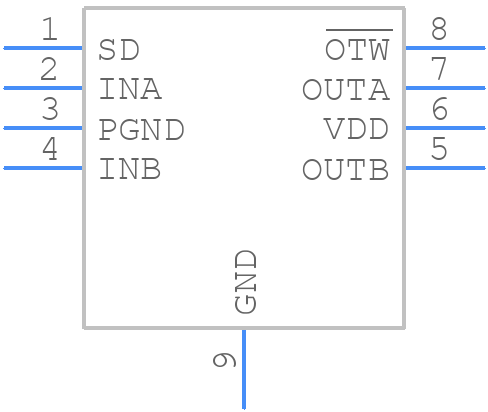

ADP3634ARDZ-R7 - Analog Devices

ADP3634ARDZ-R7 Details

• Manufacturer Part Number:

  ADP3634ARDZ-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  RD-8-1

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• High Side Driver:

  NO

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Peak Current Limit-Nom:

  4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  9.5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  18 V

• Supply Voltage1-Min:

  9.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  35 µs

• Turn-on Time:

  30 µs

• Width:

  3.9 mm
