ADP3634ARDZ - Analog Devices

Description: High Speed, Dual, 4 A MOSFET Driver, non-inverting A/B input pins, 9.5V < VIN < 18V

Download ADP3634ARDZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

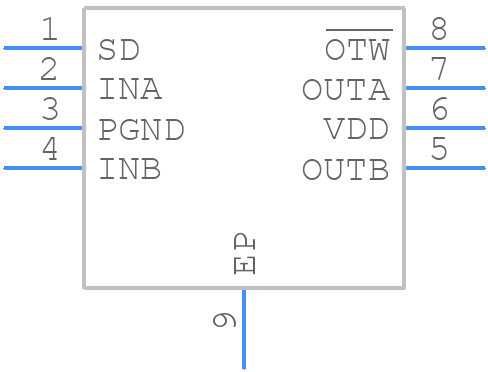

Symbol
ADP3634ARDZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3634ARDZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP] (RD-8-1) -
click to zoom
3D Models
ADP3634ARDZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP] (RD-8-1) -
click to zoom

ADP3634ARDZ Details

  • Manufacturer Part Number:

    ADP3634ARDZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    3.9 mm

ADP3634ARDZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3634ARDZ involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input impedance. It's also crucial to minimize the loop area and keep the feedback trace short.
  • The ADP3634ARDZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C.
  • Yes, the ADP3634ARDZ is suitable for high-reliability and high-temperature applications. It's manufactured using a high-reliability process, and its operating temperature range makes it suitable for demanding environments. However, it's essential to follow the recommended derating guidelines and ensure that the device's junction temperature does not exceed 150°C.
  • To troubleshoot issues with the ADP3634ARDZ, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check the output waveform and verify that it's within the specified range. If the issue persists, consult the datasheet and application notes for guidance.
