ADP3634ARHZ-R7 - Analog Devices

Description: High Speed, Dual, 4 A MOSFET Driver, non-inverting A/B input pins, 9.5V < VIN < 18V

Download ADP3634ARHZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

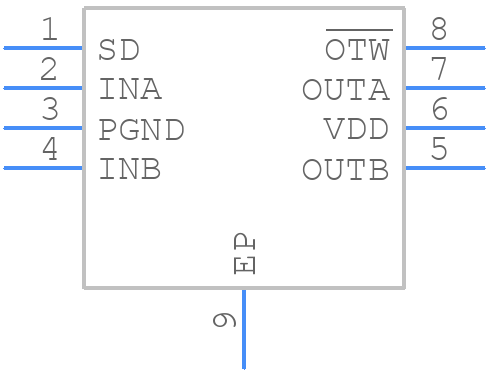

ADP3634ARHZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3634ARHZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RH-8-1_2022
click to zoom
3D Models
ADP3634ARHZ-R7 - Analog Devices - 3D model - Small Outline Packages - RH-8-1_2022
click to zoom

ADP3634ARHZ-R7 Details

  • Manufacturer Part Number:

    ADP3634ARHZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    30 µs

  • Width:

    3 mm

ADP3634ARHZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3634ARHZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to minimize noise and interference.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device should be operated within its recommended operating conditions, and the PCB layout should be designed to minimize noise and interference.
  • The maximum output current of the ADP3634ARHZ-R7 is 3A. However, the device can deliver higher currents for short periods of time, depending on the application and the thermal design of the system.
  • The ADP3634ARHZ-R7 is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for high-temperature operation. The device's power dissipation and output current should be reduced accordingly to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the ADP3634ARHZ-R7, it's essential to follow a systematic approach, starting with a review of the device's datasheet and application notes. Check the device's input and output voltages, as well as the compensation network and component values. Use oscilloscopes and other measurement tools to identify any issues with the device's operation, and consult with Analog Devices' support resources if necessary.
