ADP3634ARHZ - Analog Devices

Description: High Speed, Dual, 4 A MOSFET Driver, non-inverting A/B input pins, 9.5V < VIN < 18V

Download ADP3634ARHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

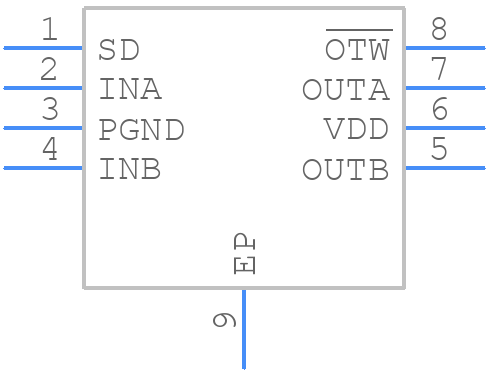

ADP3634ARHZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3634ARHZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RH-8-1-2020--
click to zoom
3D Models
ADP3634ARHZ - Analog Devices - 3D model - Small Outline Packages - RH-8-1-2020--
click to zoom

ADP3634ARHZ Details

  • Manufacturer Part Number:

    ADP3634ARHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA-T, MINI, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    3 mm

ADP3634ARHZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3634ARHZ should prioritize thermal management by providing a solid ground plane, using thermal vias, and keeping the device away from heat sources. For EMI reduction, use a multi-layer board, keep sensitive traces away from the device, and use shielding if necessary. Refer to Analog Devices' application notes and layout guidelines for more information.
  • The output capacitor selection for the ADP3634ARHZ depends on the output voltage, current, and ripple requirements. A general guideline is to use a low-ESR capacitor with a value between 10uF to 22uF. However, it's recommended to perform a thorough stability analysis using the device's datasheet and application notes to ensure the optimal capacitor selection for your specific design.
  • The ADP3634ARHZ has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device, so it's essential to ensure that the input voltage remains within the recommended range.
  • The ADP3634ARHZ has an operating junction temperature range of -40°C to 125°C. While it can operate at high temperatures, the device's performance and reliability may degrade above 85°C. It's recommended to use thermal management techniques, such as heat sinks or thermal interfaces, to keep the device temperature below 85°C for optimal performance and reliability.
  • To ensure stability, follow the recommended PCB layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, perform a thorough stability analysis using the device's datasheet and application notes to identify any potential issues. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP3634ARHZ Overview

Use the download button to access the ADP3634ARHZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP36, or try a keyword search, such as MOSFET Drivers
