ADP3650JRZ - Analog Devices

Description: MOSFET Driver High/Low Side Inv/Non-Inv

Download ADP3650JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

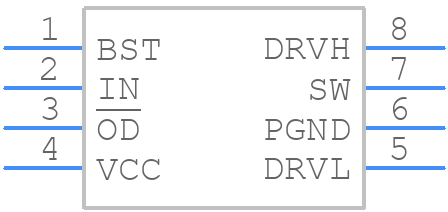

ADP3650JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3650JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R8
click to zoom
3D Models
ADP3650JRZ - Analog Devices - 3D model - Small Outline Packages - R8
click to zoom

ADP3650JRZ Details

  • Manufacturer Part Number:

    ADP3650JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.15 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    26 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    3.9 mm

ADP3650JRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3650JRZ should include a solid ground plane, separate analog and digital grounds, and a heat sink for the device. The input and output capacitors should be placed close to the device pins, and the power traces should be wide and short to minimize inductance. Additionally, a shield or screen can be used to reduce EMI radiation.
  • To optimize the performance of the ADP3650JRZ in a high-temperature environment, ensure good thermal management by providing a heat sink and adequate airflow. Reduce the input voltage and output current to minimize power dissipation, and consider using a thermal interface material to improve heat transfer. Additionally, derate the device's performance according to the temperature derating curves provided in the datasheet.
  • The recommended input capacitor value for the ADP3650JRZ is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 2x the input voltage. A ceramic or film capacitor with an X5R or X7R dielectric is recommended. The capacitor should be placed close to the device's input pins to minimize inductance and ensure good noise filtering.
  • To troubleshoot issues with the ADP3650JRZ, start by checking the input voltage, output current, and output voltage for any anomalies. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the output voltage, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the ADP3650JRZ can be used in a parallel configuration to increase the output current. However, it is essential to ensure that the devices are properly synchronized and that the output currents are balanced to prevent current mismatch and reduce the overall efficiency. Consult the datasheet and application notes for guidance on parallel configuration and synchronization techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP3650JRZ Overview

Use the download button to access the ADP3650JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP36, or try a keyword search, such as MOSFET Drivers
