ADP3654ARHZ-RL - Analog Devices

Description: Driver 4A 2-OUT Lo Side Non-Inv 8-Pin MSOP EP T/R

Download ADP3654ARHZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

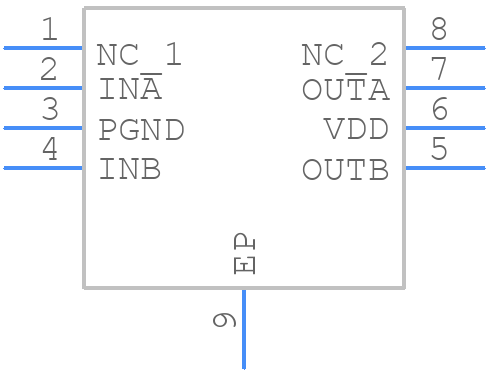

Symbol
ADP3654ARHZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3654ARHZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP]-
click to zoom
3D Models
ADP3654ARHZ-RL - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP]-
click to zoom

ADP3654ARHZ-RL Details

  • Manufacturer Part Number:

    ADP3654ARHZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MINI, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    NAND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

ADP3654ARHZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3654ARHZ-RL involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the ADP3654ARHZ-RL operates within its recommended operating conditions, monitor the input voltage, output voltage, and output current. Also, ensure the device is operated within its specified temperature range (-40°C to 125°C) and that the input and output capacitors are of high quality and suitable for the application.
  • Key considerations for thermal management of the ADP3654ARHZ-RL include providing adequate airflow, using a heat sink if necessary, and ensuring the device is mounted on a PCB with a good thermal conductivity. Additionally, ensure the device is operated within its specified temperature range and that the output current is within the recommended limits.
  • To troubleshoot issues with the ADP3654ARHZ-RL, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure it meets the recommended layout guidelines. Also, verify the input and output capacitors are of high quality and suitable for the application. If issues persist, consult the datasheet and application notes or contact Analog Devices Inc. support.
  • The ADP3654ARHZ-RL is a high-performance, low-dropout linear regulator with a high power supply rejection ratio (PSRR) and low noise. Compared to other similar devices, it offers a higher output current, lower dropout voltage, and improved PSRR. Consult the datasheet and application notes for a detailed comparison with other devices.
