ADP480120W3-L - STMicroelectronics

Description: Automotive-grade ACEPACK DRIVE power module, sixpack topology 1200 V, 1.9 mOhm typ. SiC MOSFET gen.3 based

Download ADP480120W3-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

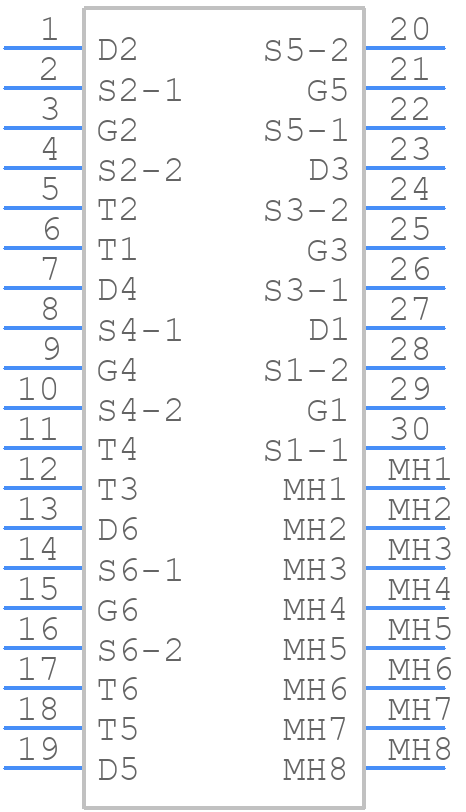

ADP480120W3-L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

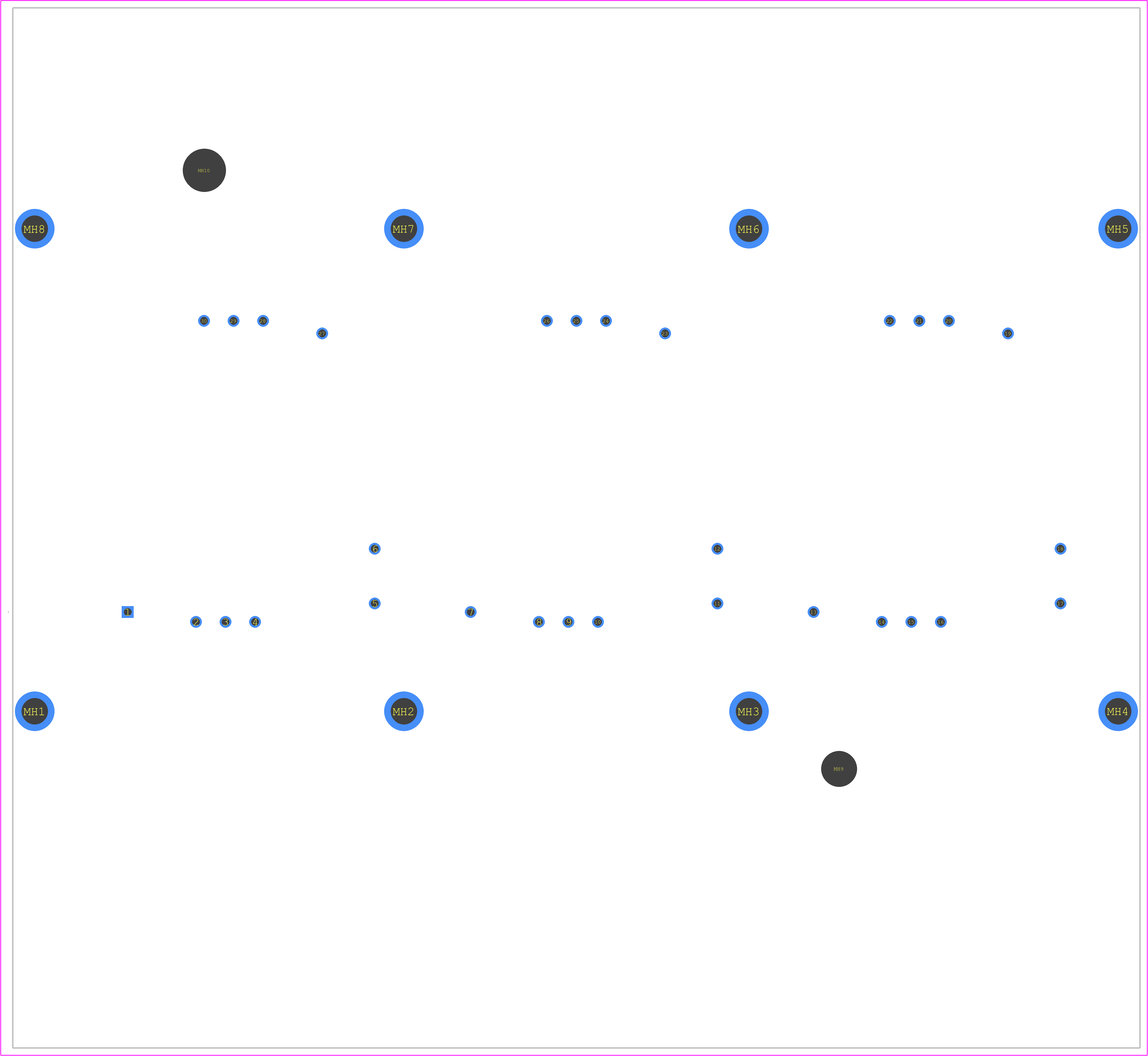

ADP480120W3-L - STMicroelectronics PCB footprint - Other - Other - ADP480120W3-L
click to zoom
3D Models
ADP480120W3-L - STMicroelectronics - 3D model - Other - ADP480120W3-L
click to zoom

ADP480120W3-L Details

  • Manufacturer Part Number:

    ADP480120W3-L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Configuration:

    3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    488 A

  • Drain-source On Resistance-Max:

    0.0026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    0.13 pF

  • JESD-30 Code:

    R-XUFM-X36

  • JESD-609 Code:

    e3

  • Number of Elements:

    6

  • Number of Terminals:

    36

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    869 W

  • Pulsed Drain Current-Max (IDM):

    1000 A

  • Reference Standard:

    IEC-61140

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

ADP480120W3-L Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal management, use a heat sink or thermal pad, and follow the recommended PCB layout. Also, derate the output current and voltage according to the temperature derating curve in the datasheet.
  • The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule, it's recommended to limit the capacitive load to 10uF or less to ensure stable operation.
  • Yes, the ADP480120W3-L is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that the device is used within its recommended operating conditions and follow the recommended PCB layout and thermal management guidelines.
  • Use an oscilloscope to monitor the output voltage and current. Check for proper PCB layout, thermal management, and input voltage regulation. Verify that the device is operated within its recommended operating conditions and follow the troubleshooting guidelines in the datasheet.
