ADP480120W3 - STMicroelectronics

Description: Automotive-grade ACEPACK DRIVE power module, sixpack topology 1200 V, 1.9 mOhm typ. SiC MOSFET gen.3 based

Download ADP480120W3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

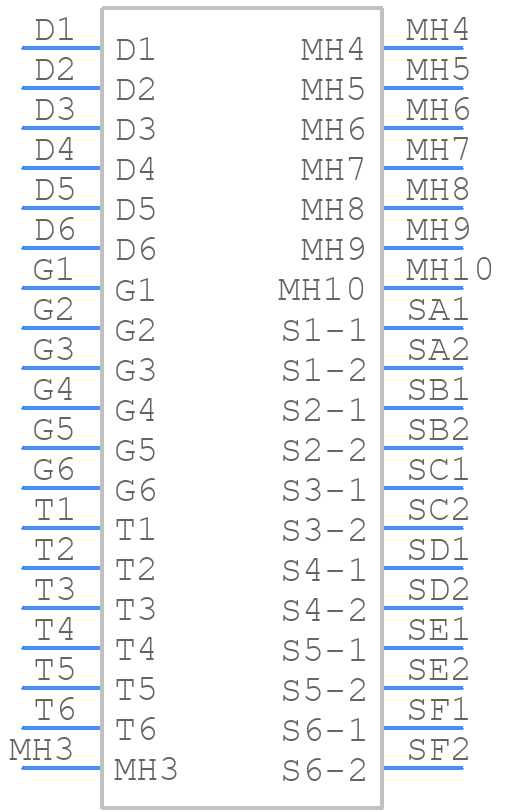

ADP480120W3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

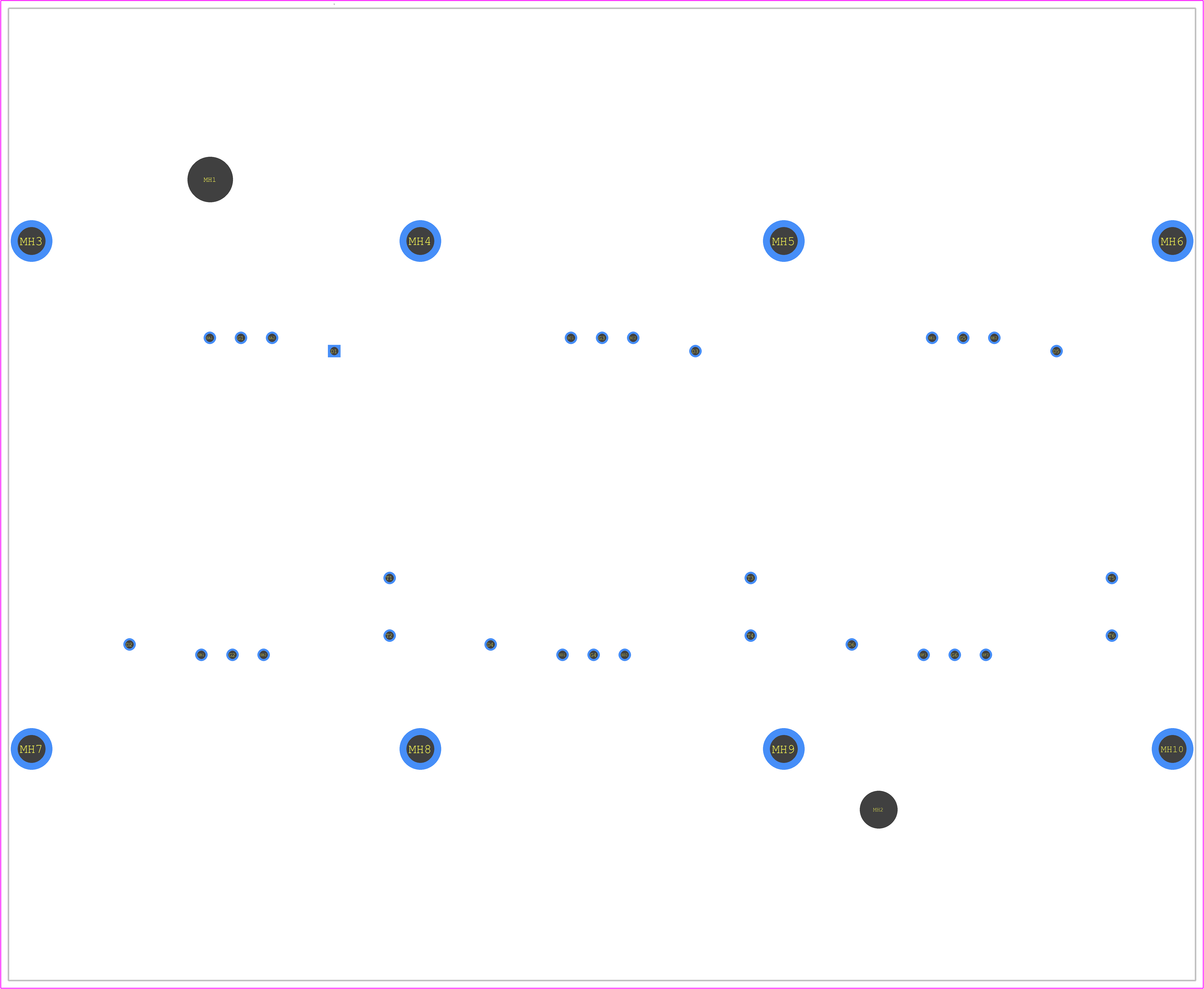

ADP480120W3 - STMicroelectronics PCB footprint - Other - Other - ADP480120W3-2
click to zoom
3D Models
ADP480120W3 - STMicroelectronics - 3D model - Other - ADP480120W3-2
click to zoom

ADP480120W3 Details

  • Manufacturer Part Number:

    ADP480120W3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Configuration:

    3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    488 A

  • Drain-source On Resistance-Max:

    0.0026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    130 pF

  • JESD-30 Code:

    R-XUFM-X39

  • JESD-609 Code:

    e3

  • Number of Elements:

    6

  • Number of Terminals:

    39

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    869 W

  • Pulsed Drain Current-Max (IDM):

    1000 A

  • Reference Standard:

    AQG-324; IEC-61140

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

ADP480120W3 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5223, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitors should be selected based on the input voltage ripple, output current, and operating frequency. A minimum capacitance of 10uF is recommended, with a voltage rating of at least 1.5 times the input voltage. X7R or X5R ceramic capacitors are suitable options.
  • The output current derating for high ambient temperatures is not explicitly stated in the datasheet. However, according to STMicroelectronics' application note AN5223, the maximum output current should be derated by 1.5% per degree Celsius above 50°C to ensure reliable operation.
  • Yes, the ADP480120W3 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments. However, additional testing and validation may be required to ensure compliance with specific industry standards.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5223, which covers common issues and their possible causes. Additionally, the device's internal protection features, such as overcurrent protection and thermal shutdown, can help identify and prevent potential issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP480120W3 Overview

Use the download button to access the ADP480120W3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP48, or try a keyword search, such as Power Field-Effect Transistors
