ADP5022ACBZ-1-R7 - Analog Devices

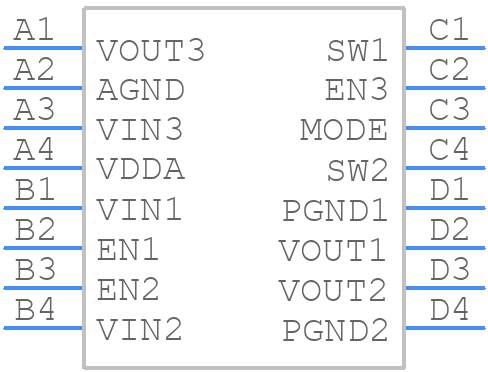

ADP5022ACBZ-1-R7 Details

• Manufacturer Part Number:

  ADP5022ACBZ-1-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

  2.08 X 2.08 MM, 0.50 MM PITCH, ROHS COMPLIANT, WLCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CB-16-7

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 1.8V AND 3.3V, ALSO OPERATES AS LDO REGULATOR

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.4 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-PBGA-B16

• JESD-609 Code:

  e3

• Length:

  2.08 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.05 A

• Output Voltage-Max:

  1.545 V

• Output Voltage-Min:

  1.455 V

• Output Voltage-Nom:

  1.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA16,4X4,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.66 mm

• Supply Current-Max (Isup):

  0.043 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  3500 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  2.08 mm
