ADP5030ACBZ-1228R7 footprint, schematic symbol and 3D model by Analog Devices

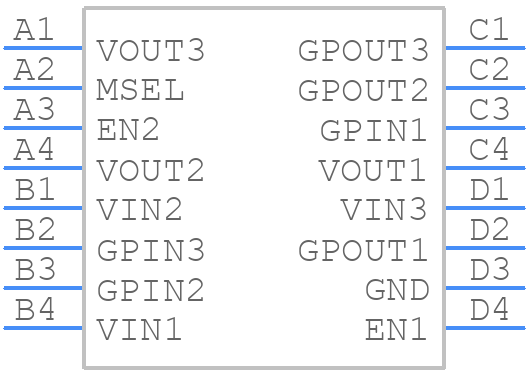

Symbol

click to zoom

PCB Footprints

ADP5030ACBZ-1228R7 - Analog Devices PCB footprint - Other - Other - BGA16C40P4X4_156X156X66

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADP5030ACBZ-1228R7
Part Number ADP5030ACBZ-1228R7
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA16C40P4X4_156X156X66
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADP5030ACBZ-1228R7 Details

Manufacturer Part Number:
ADP5030ACBZ-1228R7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
BGA
Package Description:
1.60 X 1.60 MM, 0.40 MM PITCH, ROHS COMPLIANT, WLCSP-16
Pin Count:
16
Manufacturer Package Code:
CB-16-6
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Dropout Voltage1-Max:
0.25 V
Dropout Voltage1-Nom:
0.175 V
Dropout Voltage2-Max:
0.25 V
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
JESD-30 Code:
S-PBGA-B16
JESD-609 Code:
e1
Length:
1.56 mm
Load Regulation-Max:
0.007%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
16
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.2 A
Output Current2-Max:
0.2 A
Output Voltage1-Max:
1.212 V
Output Voltage1-Min:
1.176 V
Output Voltage1-Nom:
1.2 V
Output Voltage2-Max:
2.828 V
Output Voltage2-Min:
2.744 V
Output Voltage2-Nom:
2.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.66 mm
Surface Mount:
YES
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Voltage Tolerance-Max:
2%
Width:
1.56 mm

ADP5030ACBZ-1228R7 Frequently Asked Questions (FAQs)

A good PCB layout for the ADP5030ACBZ-1228R7 involves separating the analog and digital grounds, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a star connection for the power supply and to avoid routing digital signals near the analog signals.
To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the output capacitors should be selected based on the output voltage and current requirements, and the input capacitors should be chosen to filter out high-frequency noise.
The ADP5030ACBZ-1228R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal management section in the datasheet for more information.
Yes, the ADP5030ACBZ-1228R7 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a robust process that ensures high reliability and low defect rates.
To troubleshoot issues with the ADP5030ACBZ-1228R7, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. Use an oscilloscope to measure the output voltage and current waveforms, and consult the application notes and technical support resources provided by Analog Devices Inc.
