ADP5062ACPZ-2-R7 - Analog Devices

Description: Li-Ion Battery Charger, USB, LFCSP20EP Analog Devices ADP5062ACPZ-2-R7, Battery Charge Controller, 2100mA, 20-Pin LFCSP

Download ADP5062ACPZ-2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

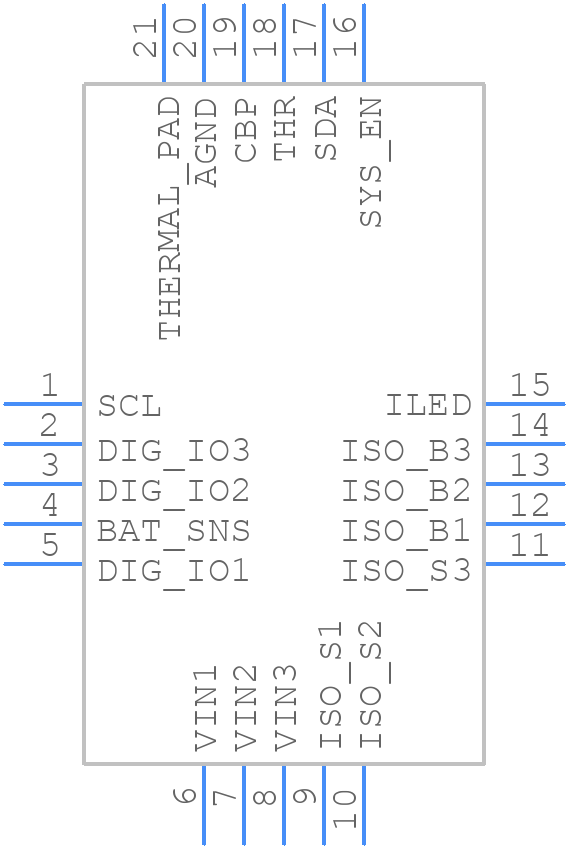

ADP5062ACPZ-2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5062ACPZ-2-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom
3D Models
ADP5062ACPZ-2-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8 (LFCSP_WQ)
click to zoom

ADP5062ACPZ-2-R7 Details

  • Manufacturer Part Number:

    ADP5062ACPZ-2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6.7 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADP5062ACPZ-2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5062ACPZ-2-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the input and output pins to the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a high-quality input capacitor with a low ESL (Equivalent Series Inductance). Also, avoid using long traces and minimize the distance between the input and output pins.
  • The ADP5062ACPZ-2-R7 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and to prevent damage to the device.
  • The ADP5062ACPZ-2-R7 is rated for operation up to 125°C, but it's essential to consider the derating of the device's performance and the potential for thermal shutdown at high temperatures. Make sure to follow the recommended thermal design guidelines and consider using a heat sink if necessary.
  • To troubleshoot issues with the ADP5062ACPZ-2-R7, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5062ACPZ-2-R7 Overview

Use the download button to access the ADP5062ACPZ-2-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP50, or try a keyword search, such as Power Management Circuits
