ADP5071AREZ-R7 - Analog Devices

Description: Conv DC-DC 2.85V to 15V Non-Inv/Inv/Step Up/Step Down Single-Out 2.85V to 39V/-0.5V to -36.15V 20-Pin TSSOP EP T/R

Download ADP5071AREZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

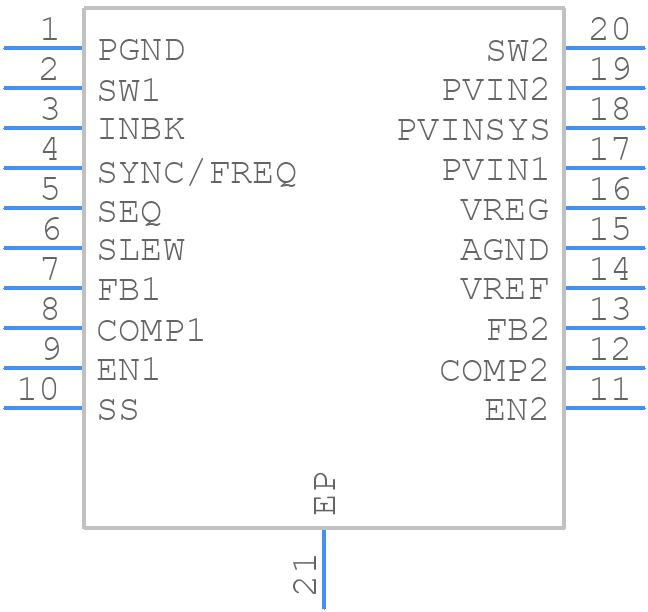

ADP5071AREZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5071AREZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-20-ren1
click to zoom
3D Models
ADP5071AREZ-R7 - Analog Devices - 3D model - Small Outline Packages - TSSOP-20-ren1
click to zoom

ADP5071AREZ-R7 Details

  • Manufacturer Part Number:

    ADP5071AREZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RE-20-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE POSITIVE O/P VOLT UP TO +39V AND NEG O/P VOLT UP TO -39V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    2.85 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.4 A

  • Output Voltage-Max:

    39 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    2560 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADP5071AREZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5071AREZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to reduce noise and oscillation.
  • The ADP5071AREZ-R7 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The ADP5071AREZ-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent overheating.
  • To troubleshoot issues with the ADP5071AREZ-R7, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5071AREZ-R7 Overview

Use the download button to access the ADP5071AREZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP50, or try a keyword search, such as Switching Regulator or Controllers
