ADP5074ACPZ-R7 - Analog Devices

Description: Switching Voltage Regulators 2.4A DC-DC Switching Inverting Regulator

Download ADP5074ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

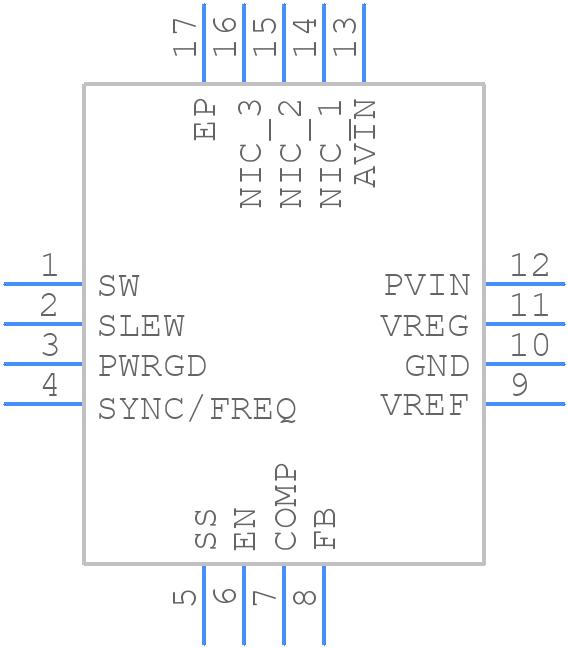

ADP5074ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5074ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead LFCSP
click to zoom
3D Models
ADP5074ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead LFCSP
click to zoom

ADP5074ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP5074ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    2.85 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Output Voltage-Max:

    -39 V

  • Output Voltage-Min:

    2.85 V

  • Output Voltage-Nom:

    -15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    2560 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP5074ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines. Avoid routing digital signals near the analog signals.
  • Ensure the input voltage is within the recommended range (2.7V to 5.5V). Use a 10kΩ pull-up resistor on the EN pin to VCC. Apply power to the input voltage pin (VIN) before the enable pin (EN). Wait for the internal voltage regulator to stabilize (typically 10ms) before enabling the device.
  • The ADP5074ACPZ-R7 can deliver up to 1.5A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's thermal derating curves for more information.
  • Use a low-ESR input capacitor (e.g., X5R or X7R ceramic) and a high-quality output capacitor (e.g., X5R or X7R ceramic or a tantalum capacitor). Keep the input and output capacitors close to the IC. Use a low-noise input voltage source and minimize the input voltage ripple.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device. Avoid blocking the airflow around the device. Use a thermal interface material (TIM) between the device and the heat sink or thermal pad.
