ADP5075ACBZ-R7 - Analog Devices

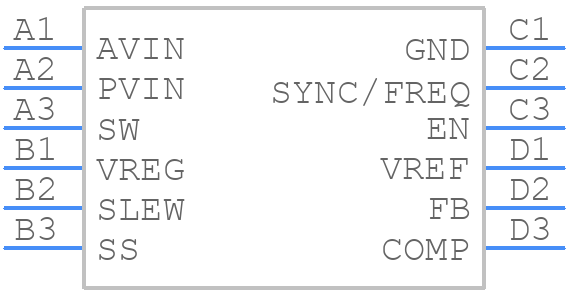

ADP5075ACBZ-R7 Details

• Manufacturer Part Number:

  ADP5075ACBZ-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WLCSP-12

• Pin Count:

  12

• Manufacturer Package Code:

  CB-12-11

• Country Of Origin:

  Singapore

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  15 V

• Input Voltage-Min:

  2.85 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PBGA-B12

• JESD-609 Code:

  e1

• Length:

  2.18 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.96 A

• Output Voltage-Max:

  -39 V

• Output Voltage-Min:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  0.66 mm

• Surface Mount:

  YES

• Switcher Configuration:

  INVERTER

• Switching Frequency-Max:

  2560 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  1.61 mm
