ADP5076ACBZ-R7 - Analog Devices

Description: Switching Voltage Regulators V+/V- SW regulator with 2A/1.2A current

Download ADP5076ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

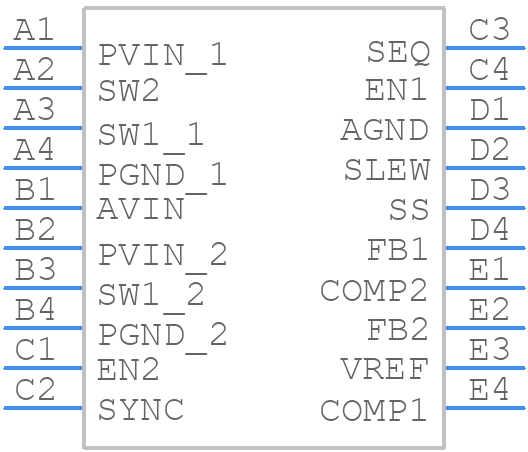

Symbol
ADP5076ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5076ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - CB-20-14
click to zoom
3D Models
ADP5076ACBZ-R7 - Analog Devices - 3D model - BGA - CB-20-14
click to zoom

ADP5076ACBZ-R7 Details

  • Manufacturer Part Number:

    ADP5076ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ADJUSTABLE O/P VOLTAGE; IT HAS 1.44V CURRENT LIMIT FOR INVERTING REGULATOR

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.85 V

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.18 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.4 A

  • Output Voltage-Max:

    35 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2560 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.61 mm

ADP5076ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5076ACBZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • The ADP5076ACBZ-R7 requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: VIN, then EN. The device has an internal power-on reset, so no external reset circuitry is required.
  • The ADP5076ACBZ-R7 can handle input voltages up to 6V without damage, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • To optimize the ADP5076ACBZ-R7 for low-power operation, use the lowest possible input voltage, minimize the output current, and use the shutdown mode when the device is not in use. Additionally, consider using a low-power mode or dynamic voltage scaling to reduce power consumption.
  • The ADP5076ACBZ-R7 has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal pad on the PCB to dissipate heat. Additionally, ensure good airflow around the device and avoid blocking the airflow with components or obstacles.
