ADP51A11 - Panasonic

Description: 1-Pressure Sensor,DIP terminal 40kPa

Download ADP51A11 Model

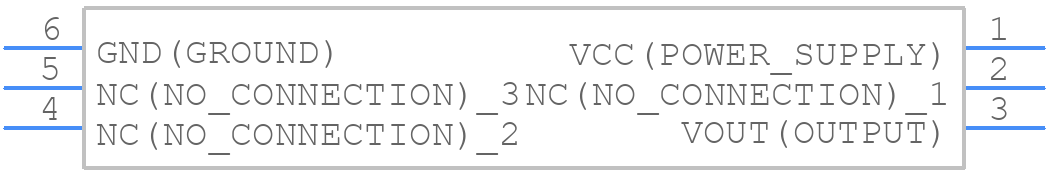

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP51A11 - Panasonic PCB footprint - Other - Other - ADP51A11-3
click to zoom
3D Models
ADP51A11 - Panasonic  - 3D model - Other - ADP51A11-3
click to zoom

ADP51A11 Details

  • Manufacturer Part Number:

    ADP51A11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Accuracy-Max (%):

    4%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    7 mm

  • Body Height:

    3.5 mm

  • Body Length or Diameter:

    7.2 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    0.3V

  • Operating Current-Max:

    3 mA

  • Operating Temperature-Max:

    45 °C

  • Operating Temperature-Min:

    5 °C

  • Output Range:

    0.3-2.7V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    5.8 Psi

  • Pressure Sensing Mode:

    GAGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
