ADP51B62 - Panasonic

Description: Board Mount Pressure Sensors ADP5(PS-A) (DIP) 6 kPa

Download ADP51B62 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

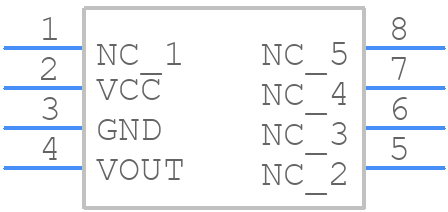

ADP51B62 - Panasonic - PCB symbol
click to zoom
PCB Footprints

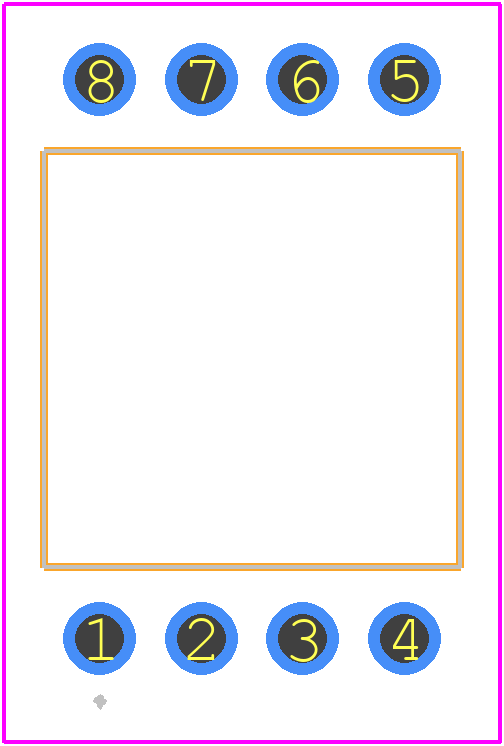

ADP51B62 - Panasonic PCB footprint - Other - Other - ADP51B62-1
click to zoom
3D Models
ADP51B62 - Panasonic - 3D model - Other - ADP51B62-1
click to zoom

ADP51B62 Details

  • Manufacturer Part Number:

    ADP51B62

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    10.4 mm

  • Body Height:

    5.7 mm

  • Body Length or Diameter:

    10.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    0.5V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    70 °C

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.87 Psi

  • Pressure Sensing Mode:

    GAGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ADP51B62 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The thermal pad should be connected to the ground plane to improve heat dissipation.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the output current and voltage at high temperatures.
  • The SOA is limited by the maximum junction temperature (Tj) of 150°C. Ensure that the device operates within the recommended voltage and current limits to prevent overheating.
  • Yes, the ADP51B62 is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
  • Check the PCB layout, thermal design, and component selection. Verify that the input voltage, output current, and operating temperature are within the recommended specifications. Use oscilloscopes and thermal imaging cameras to diagnose issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP51B62 Overview

Use the download button to access the ADP51B62 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP51, or try a keyword search, such as Pressure Sensors
