ADP5201 - Panasonic

Description: Board Mount Pressure Sensors +/-100 kPa 5 mm Pressure Sensor SMD

Download ADP5201 Model

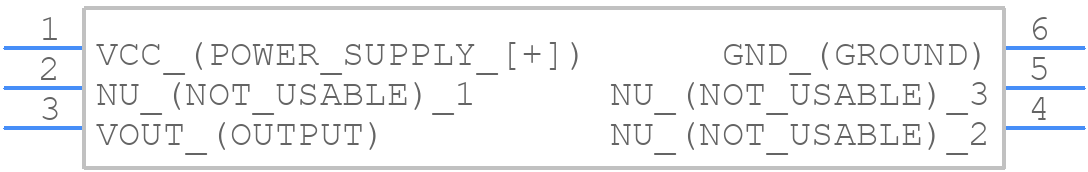

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP5201 - Panasonic PCB footprint - Other - Other - ADP5201-3
click to zoom

ADP5201 Details

  • Manufacturer Part Number:

    ADP5201

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Accuracy-Max (%):

    1.25%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    7.2 mm

  • Body Height:

    8.5 mm

  • Body Length or Diameter:

    7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.50V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    50 °C

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    14.5 Psi

  • Pressure Sensing Mode:

    GAGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

ADP5201 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5201 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to decouple the input voltage with a capacitor to reduce noise.
  • The input capacitor should have a low ESR (Equivalent Series Resistance) and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should also have a low ESR and be rated for the output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitance value should be chosen based on the desired output ripple voltage and the output current.
  • The ADP5201 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
  • To ensure stability, it's recommended to follow the recommended PCB layout, choose the right input and output capacitors, and ensure that the input voltage is well-regulated. Additionally, the ADP5201 has a built-in soft-start feature that helps to prevent oscillation during startup. If oscillation is still observed, it may be necessary to add additional compensation components or to adjust the output capacitor value.
  • The ADP5201 is rated for a maximum output current of 2A, but the actual output current capability depends on the input voltage, output voltage, and ambient temperature. It's recommended to derate the output current based on the specific application and thermal design of the system to ensure reliable operation.
