Part Image

ADP5310AREZN-R7 - Analog Devices

Description: Switching Voltage Regulators IC, ADJ Outputs, ULP Buck PMU

Download ADP5310AREZN-R7 Model

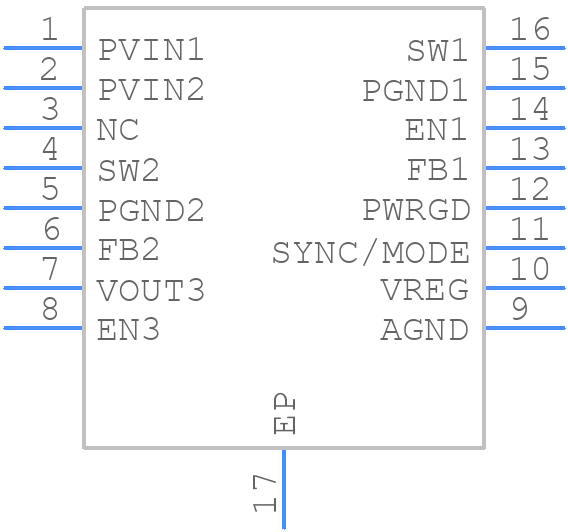

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP5310AREZN-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RE-16-2)-+-
click to zoom
3D Models
ADP5310AREZN-R7 - Analog Devices  - 3D model - Small Outline Packages - (RE-16-2)-+-
click to zoom

ADP5310AREZN-R7 Details

  • Manufacturer Part Number:

    ADP5310AREZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RE-16-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT IN ADJUSTABLE MODE IS 0.98V TO 15V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.45 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1350 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADP5310AREZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5310AREZN-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the ADP5310AREZN-R7 depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both the input and output.
  • The ADP5310AREZN-R7 is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To ensure stability and prevent oscillation, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the input and output capacitors should be chosen to provide sufficient filtering and decoupling. The device's output voltage should also be properly decoupled with a capacitor to prevent oscillation.
  • Yes, the ADP5310AREZN-R7 is suitable for use in high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it meets the requirements of various automotive and industrial standards. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5310AREZN-R7 Overview

Use the download button to access the ADP5310AREZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP53, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to ADP5310AREZN-R7

Showing 0 results

ADP5310AREZN-R7 Alternates

Showing results

Image Part Number Model
Part Image ADP5310AREZN-2.8R7 Analog Devices Inc

Switching Regulator, Current-mode, 1.45A, 1350kHz Switching Freq-Max, PDSO16
