ADP5585ACBZ-04-R7 - Analog Devices

Description: ANALOG DEVICES - ADP5585ACBZ-04-R7 - I/O EXPANDER & DECODER, 10BIT, WLCSP-16

Download ADP5585ACBZ-04-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

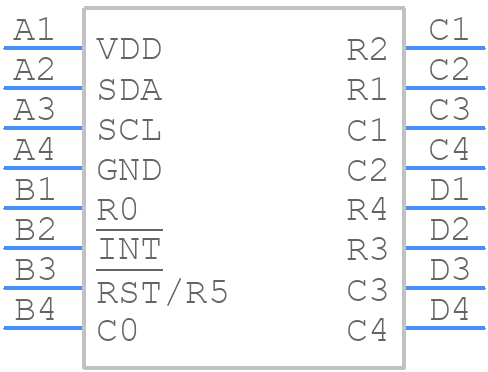

ADP5585ACBZ-04-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5585ACBZ-04-R7 - Analog Devices PCB footprint - BGA - BGA - (CB-16-10)-MM
click to zoom
3D Models
ADP5585ACBZ-04-R7 - Analog Devices - 3D model - BGA - (CB-16-10)-MM
click to zoom

ADP5585ACBZ-04-R7 Details

  • Manufacturer Part Number:

    ADP5585ACBZ-04-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:47.078

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CB-16-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.59 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    11

  • Number of Ports:

    10

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.545 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.59 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

ADP5585ACBZ-04-R7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ADP5585 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADP5585 evaluation board layout as a reference.
  • To optimize the ADP5585 for low power consumption, ensure that the input voltage is within the recommended range, use a low-power mode when possible, and minimize the output current. Additionally, consider using a lower output voltage and reducing the switching frequency. Refer to the datasheet for specific power-saving features and guidelines.
  • The maximum output current capability of the ADP5585 is 1.5 A per channel. However, the actual output current may be limited by the thermal performance of the device, PCB, and surrounding components. Ensure that the device is properly heatsinked and the PCB is designed to handle the maximum expected current.
  • To troubleshoot issues with the ADP5585, start by verifying the input voltage, output voltage, and output current. Check the device's thermal performance, PCB layout, and component selection. Ensure that the device is properly configured and that the input and output capacitors are suitable for the application. Consult the datasheet and application notes for troubleshooting guidelines and refer to the ADP5585 evaluation board as a reference.
  • The ADP5585 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. Ensure that the device is properly heatsinked, and the PCB is designed to handle high temperatures. Consult the datasheet and application notes for thermal management guidelines and consider using a thermally enhanced package or a heat sink.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5585ACBZ-04-R7 Overview

Use the download button to access the ADP5585ACBZ-04-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP55, or try a keyword search, such as Parallel IO Ports

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
