ADP5587ACPZ-1-R7 - Analog Devices

Description: Interface - I/O Expanders QWERTY Keypad Cntlr

Download ADP5587ACPZ-1-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

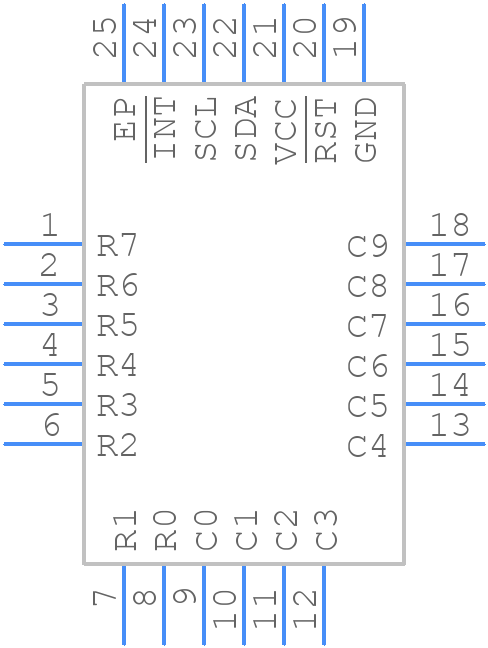

ADP5587ACPZ-1-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5587ACPZ-1-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom
3D Models
ADP5587ACPZ-1-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom

ADP5587ACPZ-1-R7 Details

  • Manufacturer Part Number:

    ADP5587ACPZ-1-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:47.102

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220WGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    18

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

ADP5587ACPZ-1-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5587ACPZ-1-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, use a 0.1uF capacitor between the VCC and GND pins.
  • The ADP5587ACPZ-1-R7 can operate from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat dissipation to maintain optimal performance.
  • To troubleshoot issues, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for proper PCB layout and thermal management. If issues persist, consult the datasheet and application notes or contact Analog Devices' support team.
  • The ADP5587ACPZ-1-R7 is a commercial-grade device, not specifically designed for high-reliability or safety-critical applications. For such applications, consider using devices with higher reliability ratings, such as automotive or industrial-grade devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5587ACPZ-1-R7 Overview

Use the download button to access the ADP5587ACPZ-1-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP55, or try a keyword search, such as Parallel IO Ports

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
