ADP5587ACPZ-R7 - Analog Devices

Description: Analog Devices ADP5587ACPZ-R7, 18-channel 18bit I/O Expander 400kHz, I2C, 24-Pin LFCSP WQ

Download ADP5587ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

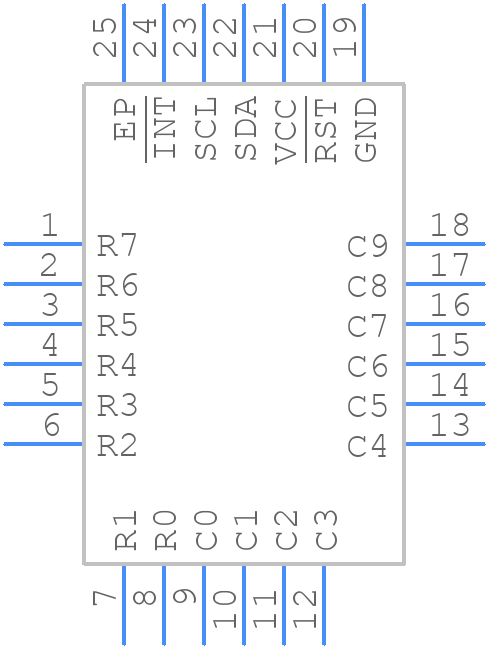

ADP5587ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5587ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_WQ-1
click to zoom
3D Models
ADP5587ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP_WQ-1
click to zoom

ADP5587ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP5587ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220WGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    18

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

ADP5587ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5587ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling of the ADP5587ACPZ-R7, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power supply voltage is within the recommended range of 2.7V to 5.5V.
  • The ADP5587ACPZ-R7 can sink or source up to 25mA of current per channel. However, it's recommended to limit the current to 10mA per channel to ensure reliable operation and to prevent overheating.
  • The ADP5587ACPZ-R7's registers can be programmed using a 2-wire I2C interface. The device has a 7-bit slave address, and the registers can be accessed using the I2C protocol. Refer to the datasheet for the register map and programming details.
  • The ADP5587ACPZ-R7 operates over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance.
