ADP7102ARDZ-1.5-R7 - Analog Devices

Description: Linear Voltage Regulators 300mA HV LDO 1.5V

Download ADP7102ARDZ-1.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

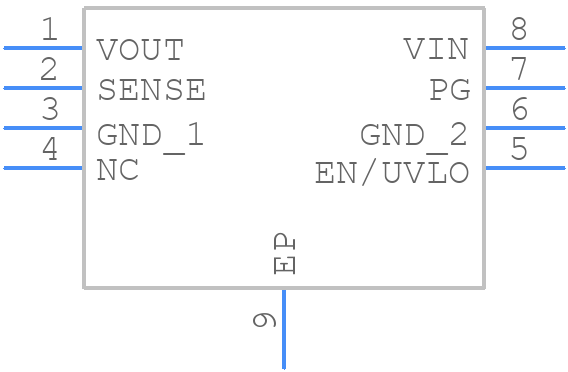

Symbol
ADP7102ARDZ-1.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7102ARDZ-1.5-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-2
click to zoom
3D Models
ADP7102ARDZ-1.5-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-2
click to zoom

ADP7102ARDZ-1.5-R7 Details

  • Manufacturer Part Number:

    ADP7102ARDZ-1.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1 V

  • Dropout Voltage1-Nom:

    1 V

  • Input Voltage Absolute-Max:

    22 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.0037575%

  • Load Regulation-Max:

    0.004485%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.515 V

  • Output Voltage1-Min:

    1.47 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

ADP7102ARDZ-1.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7102 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and keep the input and output resistors within the recommended range (1kΩ to 10kΩ). Additionally, avoid using long input traces and ensure that the input voltage is within the recommended range.
  • The ADP7102 can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the datasheet for the specific output current capability under different operating conditions.
  • The ADP7102 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the ADP7102, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, and ensure that the PCB layout follows the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
