ADP7104ACPZ-9.0-R7 - Analog Devices

Description: Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-LFCSP-WD (3x3) , -40°C ~ 125°C , 9V to 20V

Download ADP7104ACPZ-9.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

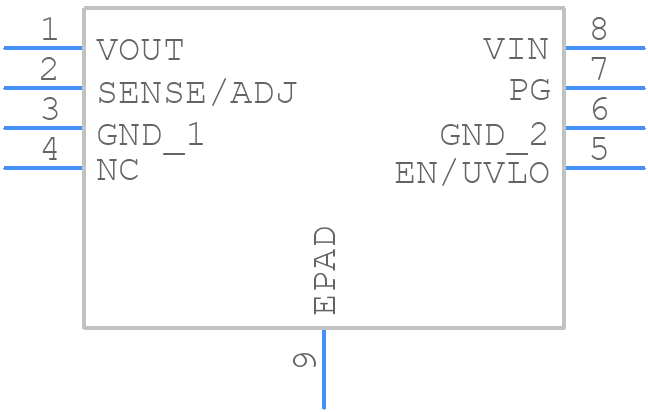

Symbol
ADP7104ACPZ-9.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7104ACPZ-9.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-11_2026
click to zoom
3D Models
ADP7104ACPZ-9.0-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-11_2026
click to zoom

ADP7104ACPZ-9.0-R7 Details

  • Manufacturer Part Number:

    ADP7104ACPZ-9.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage Absolute-Max:

    22 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0135%

  • Load Regulation-Max:

    0.0034%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    9.09 V

  • Output Voltage1-Min:

    8.82 V

  • Output Voltage1-Nom:

    9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADP7104ACPZ-9.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7104 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended operating conditions, use a stable input voltage, and add a compensation capacitor (C_COMP) between the COMP pin and GND. The value of C_COMP depends on the output capacitor and ESR, and can be calculated using the formula provided in the datasheet.
  • The maximum output current of the ADP7104 is 4A. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and ensure that the device does not exceed the maximum junction temperature (T_J) of 125°C.
  • Yes, the ADP7104 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the thermal management and ensure that the device does not exceed the maximum junction temperature (T_J) of 125°C.
  • The output capacitor should be selected based on the output voltage, output current, and ripple requirements. A low-ESR capacitor with a value between 10uF and 47uF is recommended. The capacitor should also be rated for the maximum output voltage and operating temperature.
